Solid Retention Knob
Mfr # PS-531X45
Zoro # G411178227
product price: $19.19
/eaKey Features
Thread Size
5/8"-11
Overall Length
2.266 in
Flange to Knob Length
1.266 in
Flange to Angle Length
1 in
Coolant Fed
Non-Coolant Through
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PS-531X45
Zoro #
G411178227
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
5/8"-11
Overall Length
2.266 in
Flange to Knob Length
1.266 in
Flange to Angle Length
1 in
Taper Size
CAT40
Neck Dia.
0.392 in
Details
Item
Solid Retention Knob
Coolant Fed
Non-Coolant Through
Knob Angle
45 Degrees
Number of O-Ring(s)
0
Description

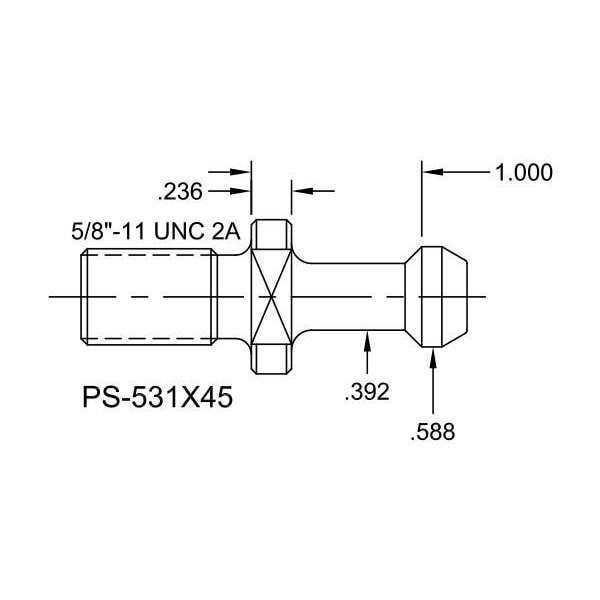

PS-531X45, CAT40 Solid Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
