Solid Retention Knob
Mfr # PS-538X90
Zoro # G311178266
product price: $31.65
/eaKey Features
Thread Size
M24-3
Overall Length
3.353 in
Flange to Angle Length
1.394 in
Number of O-Ring(s)
0
Taper Size
CAT50
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PS-538X90
Zoro #
G311178266
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M24-3
Overall Length
3.353 in
Flange to Angle Length
1.394 in
Taper Size
CAT50
Flange to Knob Length
1.788 in
Neck Dia.
0.669 in
Details
Item
Solid Retention Knob
Number of O-Ring(s)
0
Knob Angle
90 Degrees
Coolant Fed
Non-Coolant Through
Description

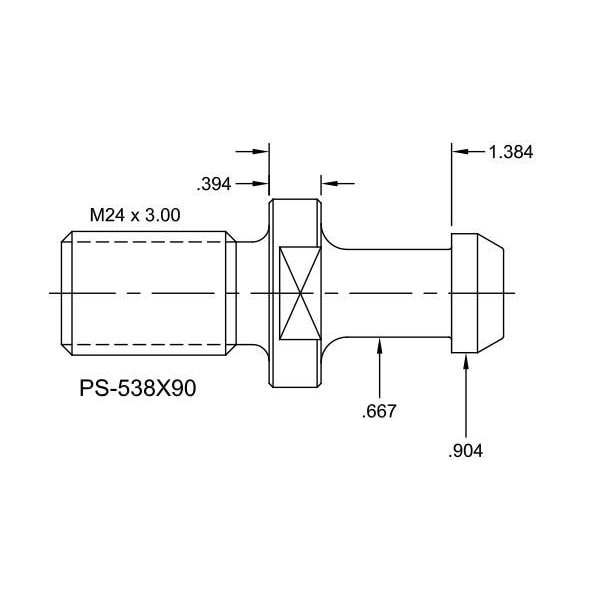

PS-538X90, CAT50 Solid Retention Knob with a 90 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
