Solid Retention Knob
Mfr # PS-575
Zoro # G511178233
product price: $20.49
/eaKey Features
Thread Size
1/2"-13
Overall Length
1.1 in
Number of O-Ring(s)
0
Coolant Fed
Non-Coolant Through
Knob Angle
45 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PS-575
Zoro #
G511178233
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
1/2"-13
Overall Length
1.1 in
Flange to Knob Length
0.46 in
Flange to Angle Length
0.32 in
Taper Size
CAT30
Neck Dia.
0.385 in
Details
Item
Solid Retention Knob
Number of O-Ring(s)
0
Coolant Fed
Non-Coolant Through
Knob Angle
45 Degrees
Description

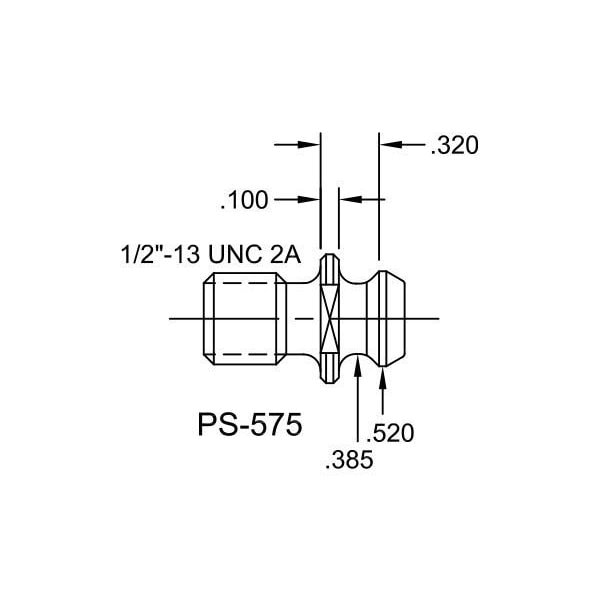

PS-575, CAT30 Solid Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
