Solid Retention Knob
Mfr # PSM-576
Zoro # G911178284
product price: $22.39
/eaKey Features
Thread Size
M12-1.75
Overall Length
1.1 in
Coolant Fed
Non-Coolant Through
Number of O-Ring(s)
0
Knob Angle
15 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSM-576
Zoro #
G911178284
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M12-1.75
Overall Length
1.1 in
Taper Size
CAT30
Details
Item
Solid Retention Knob
Coolant Fed
Non-Coolant Through
Number of O-Ring(s)
0
Knob Angle
15 Degrees
Description

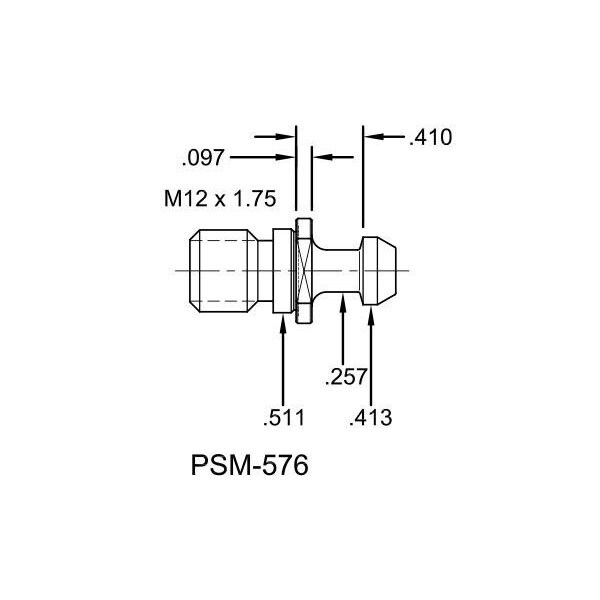

PSM-576, CAT30 Solid Retention Knob with a 15 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
