Tjernlund Products

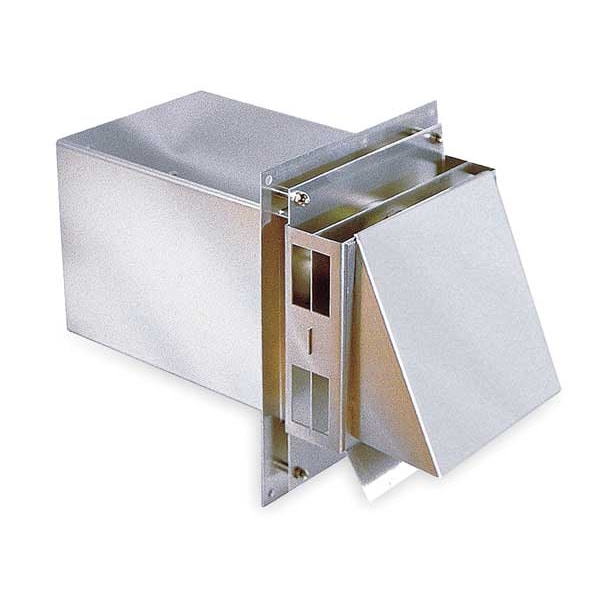

Hood, Vent, 4 In

product price: $175.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cap Height (In.) 7-3/8"
  • Cap Width (In.) 11"
  • Material Aluminum
  • Finish Flat
  • Inlet Diameter 4 in
See all product information

Product Information

Dimensions

Cap Height (In.) 7-3/8"
Cap Width (In.) 11"
Inlet Diameter 4 in
Overall Length 11 in
Fits Duct Size (In.) 4 in
Flange Size (In.) 13" x 11"
Rough-In Dimensions 8"
Dimension A (In.) 4 in
Dimension C (In.) 7 1/8 in
Dimension D (In.) 9 in
Dimension E (In.) 8 7/8 in
Dimension B (In.) 7 1/2 in
For Duct Width 7 1/2 in
Overall Height 7 3/8 in
Base Width 11 in
Inside Diameter 4 in
Overall Depth 7 3/8 in
Base Height 13 in
Overall Width 7 3/8 in
For Duct Height 7 1/2 in
For Nominal Duct Diameter 4 in

Details

Item Vent Hood
Material Aluminum
Finish Flat
For Use With Horizontal Vent Terminations for Gas Fired Equipment
Includes Heat Shield
Color Silver
Connection Type Press Fit
Features Heavy Duty
Construction Material Aluminum Alloy
Material Thickness 20 ga
Shape Rectangular & Round
Base Thickness 20 ga
Screen Included Yes
Series VH1
Material Grade 5052
Gas Appliance Category Category I
Weight 7 lb
Backdraft Damper Included No
Rain Cap Style Vented
End Type Plain
Maximum Temperature Rating 575 Degrees F
Duct Shape Rectangular
Product Type Vent Hood

Description

Vent Hood, For Nominal Duct Diameter 4 in, Gas Appliance Category Category I, For Duct Height 7 1/2 in, For Duct Width 7 1/2 in, Inlet Diameter 4 in, Material Aluminum, Overall Length 11 in, Product Type Vent Hood, Inside Diameter 4 in, Material Thickness 20 ga, Weight 7 lb, Maximum Pressure Rating Not Applicable, Maximum Temperature Rating 575 Degrees F, Seal Material Not Applicable, Standards Not Applicable, Finish Flat, Color Silver, Overall Height 7 3/8 in, Shape Rectangular & Round
