  5. Induced Draft Blower, 115, Sintered Iron, 11 1/2 in W, 9 1/4 in H, 6" Inlet and Outlet Dia.

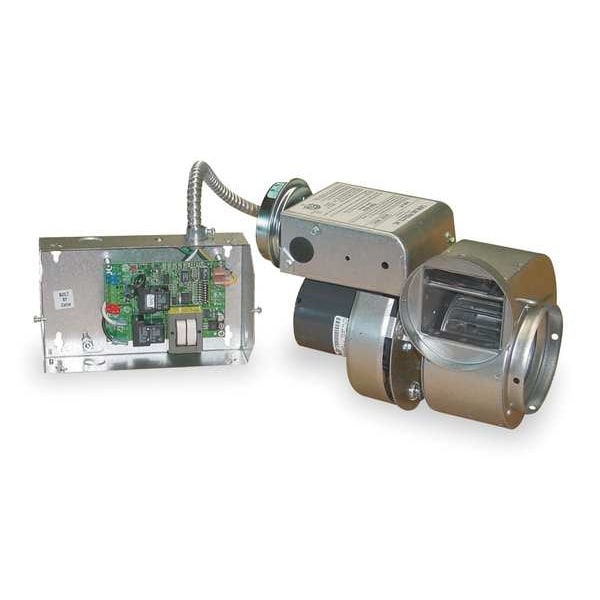

Tjernlund Products Induced Draft Blower, 115, Sintered Iron, 11 1/2 in W, 9 1/4 in H, 6" Inlet and Outlet Dia. HS2 - main

Induced Draft Blower, 115, Sintered Iron, 11 1/2 in W, 9 1/4 in H, 6" Inlet and Outlet Dia.

  • Mfr # HS2

  • Zoro # G0975317

product price:  $569.99
/ea
Free Shipping & Returns

Key Features

Inlet and Outlet Dia. (In.)
6"
Type
High Temperature
Voltage
115
Depth (In.)
8 1/2 in
Construction Material
Sintered Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HS2
Zoro #
G0975317
UPC #
080956212047
Country of Origin
United States

Dimensions

Inlet and Outlet Dia. (In.)
6"
Depth (In.)
8 1/2 in
Height (In.)
9 1/4 in
Vent Pipe Dia. (In.)
6" or 8"
Width (In.)
11 1/2 in
Overall Height
9 1/4 in
Overall Width
11 5/8 in
Minimum Vent Pipe Diameter
6 in
For Maximum Pipe Length
100 ft
Inlet Diameter
6 in
Outlet Diameter
6 in
Overall Depth
11 in
Maximum Vent Pipe Diameter
8 in

Details

Item
Induced Draft Blower
Type
High Temperature
Voltage
115
Construction Material
Sintered Iron
Amps
1.51A
Includes
Fan Proving Switch, UC1 Universal Control
Remarks
View Catalog Page for Selection Criteria
Agency Compliance
ETL Listed to UL378 and CAN3-B255-M81
Application
Boilers, Water Heaters
Watts
224 W
RPM
3300
Bearings
Sleeve
Enclosure
Open
Class
1
Overload Protection
Thermal
Duct Temp. Deg. (F)
70,300,400,500
CFM @ 0.700-In. SP
220 190 185 165
BtuH Input
300-450
CFM @ 0.000-In. SP
280 280 280 280
CFM @ 1.40-In. SP
150 - - -
CFM @ 0.500-In. SP
235 220 215 200
CFM @ 1.000-In. SP
200 150 120 -
Motor Type
Permanent Split Capacitor
Standards
cETL Listed
Maximum Heater BTU Input for Gas Appliance
600,000 BtuH
Nameplate Voltage
115V AC
Maximum Static Pressure
1 3/8 in wc
Market
Commercial, Residential
Includes Motor
Yes
Maximum Heat Input
500 MBtuH
Housing Material
Steel
Maximum Heater BTU Input for Oil Appliance
450,000 BtuH
Blower Type
Sidewall Power Venter
Maximum Motor Speed
3,300 RPM
Housing Material Finish
Aluminum Plated
Airflow at Temperature
158 cfm @ 70 Degrees F, 196 cfm @ 70 Degrees F, 215 cfm @ 70 Degrees F, 235 cfm @ 70 Degrees F, 286 cfm @ 70 Degrees F
Current
1.51 A
Airflow @ 0.000 in SP
286 cfm
Power Consumption
224 W
For Appliance Type
Boilers, Furnaces, Unit Heaters, Water Heaters
For Fuel Type
LP, Natural Gas, Oil
Outlet Shape
Round

Description

Induced Draft Blower, Application Boilers, Water Heaters, For Fuel Type LP, Natural Gas, Oil, For Appliance Type Boilers, Furnaces, Unit Heaters, Water Heaters, Maximum Vent Pipe Diameter 8 in, Minimum Vent Pipe Diameter 6 in, Maximum Heater BTU Input for Gas Appliance 600,000 BtuH, Maximum Heater BTU Input for Oil Appliance 450,000 BtuH, Inlet Diameter 6 in, Outlet Diameter 6 in, Nameplate Voltage 115V AC, Current 1.51 A, Maximum Motor Speed 3,300 RPM, Maximum Static Pressure 1 3/8 in wc
