  9. Inline Draft Inducer Blower For 4 in x 12-3/4 in Cut Out, 115V, 1/4 hp

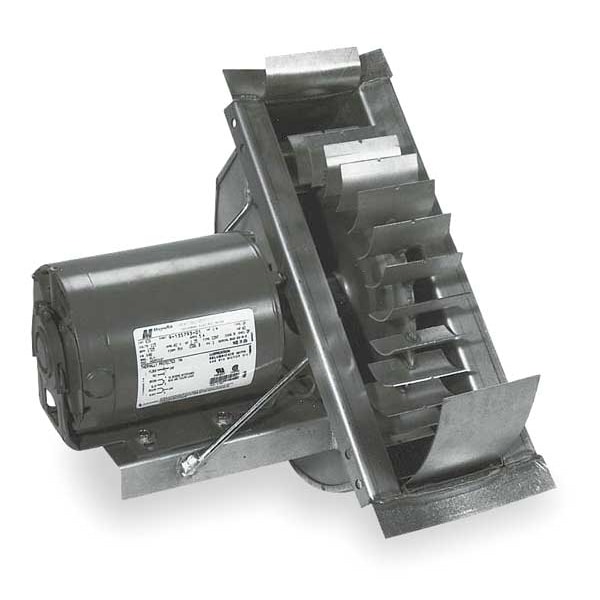

Tjernlund Products Inline Draft Inducer Blower For 4 in x 12-3/4 in Cut Out, 115V, 1/4 hp I - main

Inline Draft Inducer Blower For 4 in x 12-3/4 in Cut Out, 115V, 1/4 hp

  • Mfr # I

  • Zoro # G0357052

product price: $618.99
/ea
Free Shipping & Returns

Key Features

Type
In-line
Voltage
115
Depth (In.)
8 3/4 in
Cut Out Required
4" x 12-3/4"
HP
1/4 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
I
Zoro #
G0357052
UPC #
080956120007
Country of Origin
United States

Dimensions

Depth (In.)
8 3/4 in
Height (In.)
14 1/2 in
Vent Pipe Dia. (In.)
8 to 12"
Width (In.)
13 1/2 in
Overall Height
14 1/2 in
Overall Width
13 1/2 in
Maximum Vent Pipe Diameter
12 in
Minimum Vent Pipe Diameter
8 in
Cutout Size
4 in x 12 3/4 in
Overall Depth
11 3/4 in

Details

Item
Draft Inducer
Type
In-line
Voltage
115
Cut Out Required
4" x 12-3/4"
HP
1/4 hp
Construction Material
Aluminized Steel
Amps
5.4A
Includes
Fastening Band
Remarks
View Catalog Page for Selection Criteria
For Use With Mfr. Model Number
PS1505
Application
Boilers, Furnaces, Water Heaters
RPM
1725
Overload Protection
Thermal
Heater Btu Input @ 530 (F)
1,100,000 1,100,000 840,000 400,000
CFM @ 390 Deg. (F)
603653615357
SP @ 270 Deg. (F)
0.1250.1350.1400.128
SP @ 390 Deg. (F)
0.1430.1500.1450.115
SP @ 530 Deg. (F)
0.1470.1480.1360.100
CFM @ 530 Deg. (F)
566566440211
Heater Btu Input @ 270 (F)
900,000 1,110,000 1,250,000 1,030,000
CFM @ 0.500-In. SP
N/A.
CFM @ 270 Deg. (F)
590765850710
Heater Btu Input @ 390 (F)
1,200,000 1,330,000 1,260,000 710,000
Minimum Heat Input
400,000 Btu (Oil/Barometric), 710,000 Btu (Gas/Barometric), 900,000 Btu (Gas/Draft Hood)
Maximum Heater BTU Input for Gas Appliance
1,330,000 BtuH
Maximum Heater BTU Input for Oil Appliance
1,100,000 BtuH
Airflow at Temperature
566 cfm @ 530 Degrees F, 566 cfm @ 530 Degrees F, 440 cfm @ 530 Degrees F, 211 cfm @ 530 Degrees F, 590 cfm @ 270 Degrees F, 765 cfm @ 270 Degrees F, 850 cfm @ 270 Degrees F, 710 cfm @ 270 Degrees F, 603 cfm @ 390 Degrees F, 653 cfm @ 390 Degrees F, 615 cfm @ 390 Degrees F, 357 cfm @ 390 Degrees F
Maximum Heat Input
1,100,000 Btu (Oil/Barometric), 1,250,000 Btu (Gas/Draft Hood), 1,330,000 Btu (Gas/Barometric)
Current
5.4 A
Power Consumption
0.2 hp
Nameplate Voltage
115V AC
For Appliance Type
Boilers, Furnaces, Non-Condensing Chimney Vented Gas and Oil Fueled Heating Equipment, Ovens, Water Heaters
Maximum Static Pressure
1/8 in wc
For Fuel Type
Natural Gas, Oil
Housing Material
Steel
Frequency
60 Hz
Blower Type
Induced Draft Blower

Description

Draft Inducer, Application Boilers, Furnaces, Water Heaters, For Fuel Type Natural Gas, Oil, For Appliance Type Boilers, Furnaces, Non-Condensing Chimney Vented Gas and Oil Fueled Heating Equipment, Ovens, Water Heaters, Maximum Vent Pipe Diameter 12 in, Minimum Vent Pipe Diameter 8 in, Maximum Heater BTU Input for Gas Appliance 1,330,000 BtuH, Maximum Heater BTU Input for Oil Appliance 1,100,000 BtuH, Nameplate Voltage 115V AC, Current 5.4 A, Frequency 60 Hz, Maximum Static Pressure 1/8 in wc
