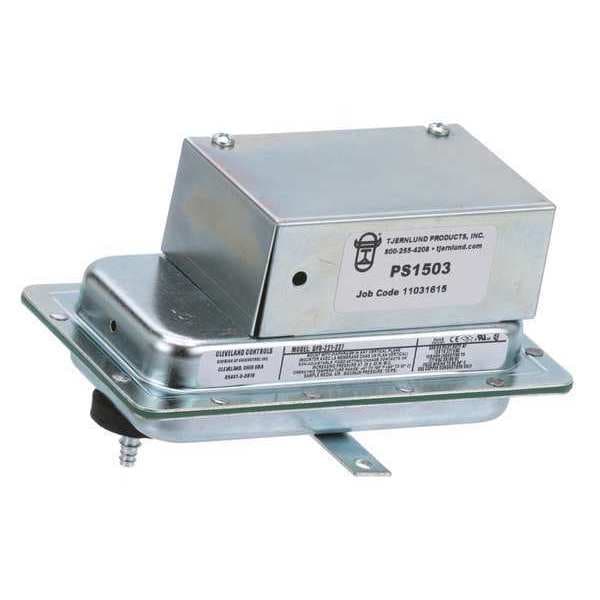

Switch, Duct Pressure
Mfr # PS1503
Zoro # G2547894
product price: $66.19
/eaKey Features
Sample Line Connector
Barbed
Switch Type
SPST
Type
Duct Pressure Switch
Dia. (In.)
1 9/20 in
Height (In.)
3 1/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PS1503
Zoro #
G2547894
UPC #
080956890009
Country of Origin
United States
Dimensions
Dia. (In.)
1 9/20 in
Height (In.)
3 1/16 in
Overall Depth
4 1/2 in
Overall Diameter
1 7/16 in
Overall Width
5 3/4 in
Sample Line Connection Size
1/4 in
Overall Height
2 3/4 in
Description
Air Sensing Switch, Application Air Filtration, Humidity Detection and Control, Positive Pressure Detection, Contact Form SPST, Electrical Connection Type Hardwired, Electrical Rating 15 A Non-Inductive to 277V AC, 300 VA Pilot Duty @ 120 to 277V AC, Housing Material Steel, Housing Type Conduit Box, Includes -, Input Voltage 115V AC, Maximum Differential Pressure Setting 0.02 in wc, Maximum Operating Temperature 180 Degrees F, Maximum Pressure Rating 0.5 psi, Maximum Pressure Setting 0.05 in wc
