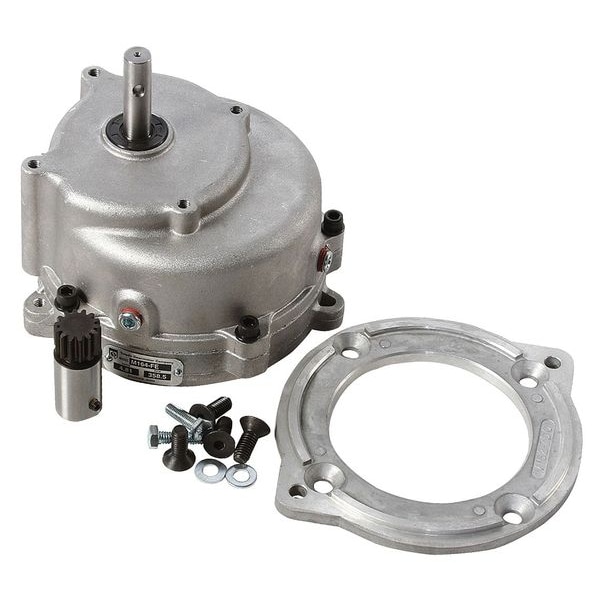

Speed Reducer, Direct Drive, 56C, 4.81:1

Mfr # M164-56C-FS
Zoro # G6686924

$458.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Nominal Ratio 4.81:1
Input RPM 1725 rpm
Bore Dia. 0.6257"
Nominal Output RPM 358 RPM
Overall Length 7.05"

See all product information

Brand Toledo Gearmotor
MFR # M164-56C-FS
Zoro # G6686924
Country of Origin United States
Category Speed Reducers

Dimensions

Bore Dia.	0.6257"
Overall Length	7.05"
Dimension U	2.72 in/2.84 in
Dimension H	2.41 in /2.47 in
Dimension C	1.18 in
Output Shaft Dia.	7/8 in
Dimension D	7.25 in
Dimension A	8.25 in
Dimension V	6.88 in
Dimension K	0.4 in
Dimension L	0.15 in
Dimension BD	4.15 in
Dimension W	5.880 in
Dimension M	5 in
Dimension B	4.53 in
Dimension F	4.50 in
Dimension G	0.5 in
Input Keyway Depth	3/16 in
Input Keyway Width	3/16 in
Input Shaft Diameter	5/8 in
Output Shaft Diameter	7/8 in

Details

Item	In-Line Gear Reducer
Nominal Ratio	4.81:1
Input RPM	1725 rpm
Nominal Output RPM	358 RPM
Standards	NEMA
Output Torque @ 1/4 HP	44 in-lb
Lubrication	Recommend Synthetic 75W90, Shipped Dry
Output Torque @ 1/3 HP	58 in-lb
Mounting	Any Position
Rotation	CW/CCW
Bearings	Ball
Overhung Load	249 lb
Speed Reducer Type	Direct Drive, Inline
Output Torque @ 1/2 HP	88 in-lb
Single/Double Output/Universal	Single Output
Housing Material	Die Cast Aluminum
Pinion Material	Hardened and Ground Steel
Max. Output Torque	255 in-lb
Reducer Model No.	M164-56C
Frame	56c
Shaft Orientation	Parallel Inline
Duty	Class I
Seal Type	Double Lip on Input and Output
Number of Stages	2
Gear Type	Spur
Output Torque @ 1 HP	176 in-lb
Gear Material	Steel
Output Torque @ 1.5 HP	255 in-lb
Max. Input HP	1.5 hp
Output Torque @ 3/4 HP	132 in-lb
Nominal Output rpm	358 rpm
Motor Frame Designation	56C
Gear Ratio	4.80:1
Overhung Load Capacity	249 ft-lb
Mounting Orientation	Any Angle
Maximum Output Speed	358 RPM
Maximum Input Horsepower	1.48 hp
Bearing Type	Ball
Maximum Input Speed	1,725 RPM
Maximum Output Torque	255 in-lb
Input Connection Type	Direct Drive, Inline

Description

Speed Reducer, Input Connection Type Direct Drive, Inline, Gear Type Spur, Maximum Output Speed 358 RPM, Motor Frame Designation 56C, Gear Ratio 4.80:1, Rotation CW/CCW, Maximum Input Horsepower 1.48 hp, Maximum Output Torque 255 in-lb, Overhung Load Capacity 249 ft-lb, Mounting Orientation Any Angle, Bearing Type Ball, Maximum Input Speed 1,725 RPM, Gear Material Steel
