  13. Lever Lockset, Mechanical, Passage, Grade 1

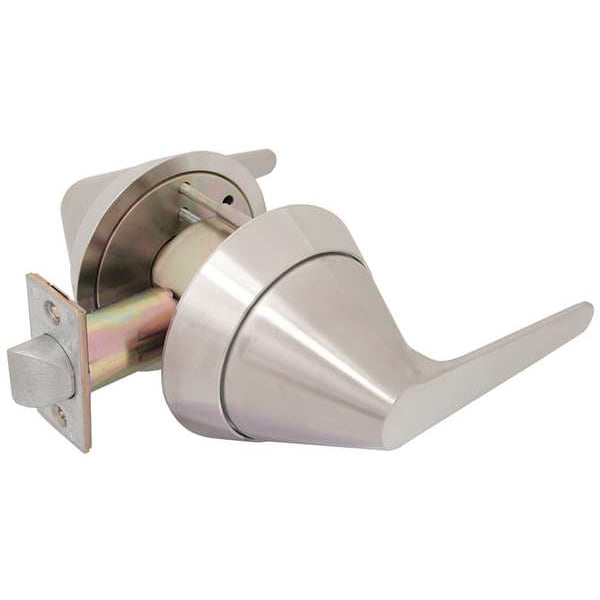

Townsteel Lever Lockset, Mechanical, Passage, Grade 1 TRX-L-75-630 - main

Lever Lockset, Mechanical, Passage, Grade 1

  • Mfr # TRX-L-75-630

  • Zoro # G4806541

product price: $589.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Wood, Steel and Fiberglass Doors
Includes
Mounting Screws
Key Type
Different
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TRX-L-75-630
Zoro #
G4806541
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2 in
For Door Thickness
1-3/4"
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Width
1 1/4 in
Door Thickness - Maximum
2 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Wood, Steel and Fiberglass Doors
Includes
Mounting Screws
Key Type
Different
Keyway Type
Schlage C
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
TRXL
Style
TRXL
Finish
Satin Stainless
Item
Door Lockset
Features
For Use On Wood and Metal Doors, Tamper Resistant Mounting Screws
Cylinder Core Type
Interchangeable Core Cylinder
Lockset Fire Rating
3 hr
Strike Dim.
1-1/4 in x 4-7/8 in
Lockset Performance Strength
Heavy Duty
Ligature Resistant
Yes
Lockset Finish
Satin Stainless Steel
Handle Material
Stainless steel
Key Material
Brass
Mortise / Cylindrical
Cylindrical
ADA Compliant
Yes
Number of Keys
0
Strike Type
ASA
Standards
Act Compliant, ANSI/BHMA A156.13, ANSI/BHMA Grade 1, BAA, UL Listed
Grade
1
Fire Rated
3 hr.
Strike
ASA
Application
Commercial
Pins
6
Type
Cylindrical
Cylinder
Standard or IC Core
Material
Brass, Steel, Zinc
Function
Passage
Visual Indicator Message
No Message
Lockset Function ANSI Code
F75
Latch Bolt/Dead Bolt
Spring Latch
UL Fire Rating
UL10C
Includes Hardware
Hardware Included
ANSI Grade
1
Performance Grade
1
Hand Orientation
Non-Handed
Knob/Handle Material
Stainless Steel
Lockset Type
Mechanical
Lockset Style
TRXL Cylindrical Lock
Ligature-Resistant
Ligature-Resistant
ANSI/BHMA Finish
Satin Stainless Steel
Locking/Unlocking Access - Inside
Not Lockable
Locking/Unlocking Access - Outside
Not Lockable
Fire Rating
3 hr

Description

Lever Lockset,Mechanical,Passage,Grade 1
