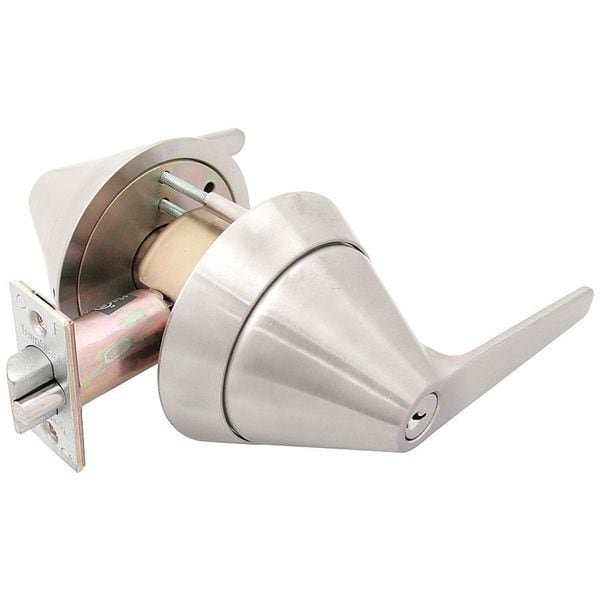

Townsteel Lever Lockset, Mechanical, Storeroom TRX-L-86-630 - main

Lever Lockset, Mechanical, Storeroom

  • Mfr # TRX-L-86-630

  • Zoro # G4806471

product price: $551.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Storeroom
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TRX-L-86-630
Zoro #
G4806471
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2 in
For Door Thickness
1-3/4"
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Width
1 1/4 in
Door Thickness - Maximum
2 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Storeroom
Lockset Grade
1
Style
TRXL
Lockset Finish
Satin Stainless Steel
Keyway Type
Schlage C
Key Type
Keyed Different
Key Material
Brass
Strike Dim.
1-1/4 in x 4-7/8 in
Number of Pins
6
Features
For Use On Wood and Metal Doors, Tamper Resistant Mounting Screws
Item
Door Lockset
Includes
Mounting Screws
Cylinder Core Type
Interchangeable Core Cylinder
Standards
Act Compliant, ANSI/BHMA A156.13, ANSI/BHMA Grade 1, BAA, UL Listed
Lockset Fire Rating
3 hr
Series
TRXL
Lockset Performance Strength
Heavy Duty
Backset
2 3/4 in
ADA Compliant
Yes
Number of Keys
2
Strike Type
ASA
Mortise/Cylindrical
Cylindrical
Ligature Resistant
Yes
For Use With
Wood, Steel and Fiberglass Doors
Handle Material
Stainless steel
Grade
1
Finish
Satin Stainless
Keying
Keyed Different
Fire Rated
3 hr.
Type
Cylindrical
Visual Indicator Message
No Message
Material
Brass, Steel, Zinc
Function
Storeroom
Pins
6
Strike
ASA
Cylinder
Standard or IC Core
Ligature-Resistant
Ligature-Resistant
Locking/Unlocking Access - Inside
Not Lockable
ANSI/BHMA Finish
Satin Stainless Steel
Performance Grade
1
Lockset Style
TRXL Cylindrical Lock
Fire Rating
3 hr
Includes Hardware
Hardware Included
ANSI Grade
1
Application
Commercial
Knob/Handle Material
Stainless Steel
Latch Bolt/Dead Bolt
Latch Bolt
Hand Orientation
Non-Handed
Lockset Type
Mechanical
UL Fire Rating
UL10C
Locking/Unlocking Access - Outside
Keyway
Lockset Function ANSI Code
F86

Description

Lever Lockset,Mechanical,Storeroom
