  9. HV 14" Blower 120V 2800CFM, Ceiling, Wall Mount, 12 in Blade Dia, 120V AC, 1,732 cfm
No Product Image Available

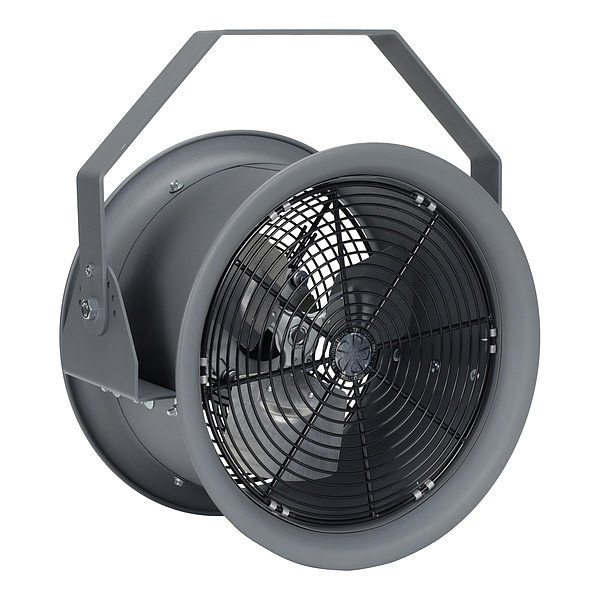

HV 14" Blower 120V 2800CFM, Ceiling, Wall Mount, 12 in Blade Dia, 120V AC, 1,732 cfm

  • Mfr # HV14120V

  • Zoro # G816381468

product price: $967.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
12 in
Blade Material
Aluminum
Phase
1
Wire Guard Finish
Black Powder Coated
Number of Conductors
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HV14120V
Zoro #
G816381468
UPC #
686334822091
Country of Origin
United States

Dimensions

Blade Diameter
12 in
Shaft Dia.
1/2 in
Width
19 3/4 in
Height
21 1/4 in
Length
14 1/2 in
Depth
13 1/4 in
Height Adjustment
Fixed Height
Base Dia.
12 in

Details

Blade Material
Aluminum
Phase
1
Wire Guard Finish
Black Powder Coated
Number of Conductors
2
Number of Speeds
1
Guard Material
Steel
Max. Ambient Temp.
115 Degrees F
Environmental Applications
Commercial/Industrial
Fan Mounting Location
Ceiling, Wall
For Use With
HV-1, HV-2, HV-3, HV-3-34
Motor Enclosure
Totally Enclosed Air-Over
Motor HP
1/4 hp
Item
HV 14" Blower 120V 2800CFM
Motor Type
Permanent Split Capacitor/Lubricate
Oscillation
Non-Oscillating
NEMA Plug Configuration
Hardwire
Drive Type
Direct Drive
Amps
2.5 A
Number of Blades
3
Motor Insulation
Class B
Air Flow
1,732 cfm
Air Velocity @ 10 Ft.
210 fpm
Bearing Type
Ball
Watts
187 W
Includes
Mounting Yoke, Secondary Safety Support Cable
Voltage
120V AC
Sound Level
79 dBa @ 20 ft
Standards
ETL C/US Listed, OSHA
Air Velocity @ 40 Ft.
90 fpm
Color
Gray
Fan Power Source
Hardwired
Thermal Protection
Automatic
Air Velocity @ 20 Ft.
170 fpm
Hz
60 Hz
Fan Accessory Material
Steel
Fan Accessory Finish
Powder Coated
Assembly Required
No
RPM
3,400 RPM
Fan Housing Material
Steel
Motor Design
Single-Phase
Features
Pivot in (9) Adjustment Settings at 15 Degrees Variations
Housing Finish - Fans
Powder Coated
Battery Operated - Fans
No
Fan Blade Finish
No Decorative Finish
Wheeled Base
Stationary
Head Tilt Adjustment
180 Degrees
Fan Blade Color
Gray

Description

Mounted Fan, Non-Oscillating, Voltage 120V AC, 1 Phase, Air Velocity @ 20 Ft. 170 fpm, Motor HP 1/4 hp, Fan Mounting Location Ceiling, Wall, Sound Level 79 dBA, Max. Ambient Temp. 115 Degrees F, Hz 60 Hz, Watts 187 W, Motor Type Permanent Split Capacitor/Lubricate, Drive Type Direct Drive, Height 21 1/4 in, Width 19 3/4 in
