Shop TRANE

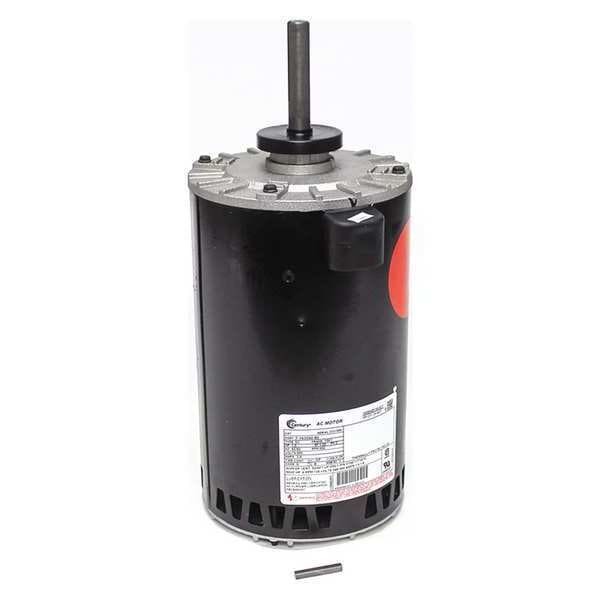

Condenser Fan Motor, 1 hp

  • Mfr # MOT9903

  • Zoro # G2491767

product price:  $1,610.99
/ea
Free Shipping & Returns

Key Features

Voltage
460V AC
Includes
Wire Harness Plug
HP
1 hp
Motor Service Factor
1
Motor Mounting Type
Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOT9903
Zoro #
G2491767
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
14 7/8 in
Shaft Dia.
5/8 in
Shaft Length
3 1/2 in
Shaft Diameter
5/8 in
Frame Size
56Y

Details

Item
Motor, 1 HP, 460V, 850 rpm with Plug
Voltage
460V AC
Includes
Wire Harness Plug
HP
1 hp
Motor Service Factor
1
Motor Mounting Type
Screw
Phase
Three
Motor Shaft Rotation
CW/CCW
RPM Range
0-1,000
Full Load Amps
2.4 A
Ins. Class
B
Motor Enclosure Design
Open Drip Proof
Motor Bearings
Ball
Nameplate RPM
850
Voltage Compatibility
460V AC
Motor Design
Three-Phase
Max. Ambient Temp.
140 Degrees F
Full Load Amps @ 50Hz
2.4 A
HP @ 50Hz
1 hp
Voltage @ 50Hz
460
Service Factor @ 50Hz
1
Motor Mounting Position
Vertical
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
460V AC
Motor Enclosure Type
Open Drip Proof
Insulation Class
B
Compatible Brand
Trane
Ambient Temperature - Maximum
60 Degrees C
Full Load Current @ 50 Hz
2.4 A
Capacitor Required
Capacitor Not Required
Nameplate Service Factor @ 50 Hz
1
Nameplate Horsepower @ 50 Hz
1 hp
Nameplate Service Factor @ 60 Hz
1
Product Type
Condenser Fan Motor
Full Load Current @ 60 Hz
2.4 A
Compatible Manufacturer Part Number
FAN4082

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, Voltage 460V AC, Full Load Amps 2.4 A, 56Y Frame, Motor Service Factor 1, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof
