Shop TRANE

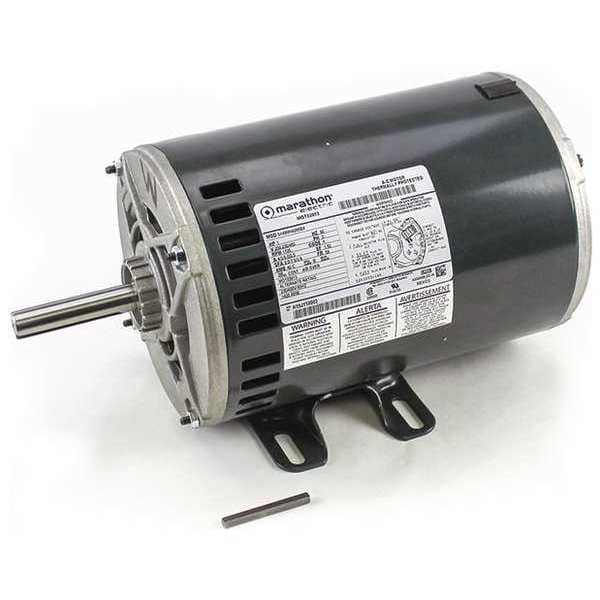

Fan and Blower Motor, 1 hp

  • Mfr # MOT2913
  • Zoro # G2491931
product price:
$
2,006.99
/ea
Free Shipping & Returns

Key Features

Voltage
208-230/460V AC
Motor Design
Three-Phase
Motor Bearings
Ball
Motor Enclosure Design
Open Drip Proof
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MOT2913
Zoro #
G2491931
UPC #
-
Country of Origin
Mexico
Item
Motor, 1 HP, 208-230/460V, 1725 rpm
Voltage
208-230/460V AC
Motor Design
Three-Phase
Motor Bearings
Ball
Motor Enclosure Design
Open Drip Proof
No. of Speeds
1
Phase
Three
RPM Range
1,701-1,800
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Voltage Compatibility
208V AC, 230V AC, 460V AC
Motor Service Factor
1.5
Motor Mounting Type
Resilient Base
Full Load Amps
2.1 A
Frame
56
HP
1 hp
Nameplate RPM
1725
Usable @ 208V
Usable at 208V
Max. Ambient Temp.
104 Degrees F
Weight
27 lb
Duty Cycle
Continuous
Bearing Type
Ball
Compatible Brand
Trane
Motor Enclosure Type
Open Drip Proof
Insulation Class
B
Number of Speeds
1
Product Type
Fan and Blower Motor
Duty
Continuous
Nameplate Service Factor @ 60 Hz
1.5
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
4.0-5.0/2.5 A
Capacitor Required
Capacitor Not Required

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.0-5.0/2.5 A, 56 Frame, Usable @ 208V Usable at 208V, Motor Service Factor 1.5, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Resilient Ring
