Shop TRANE

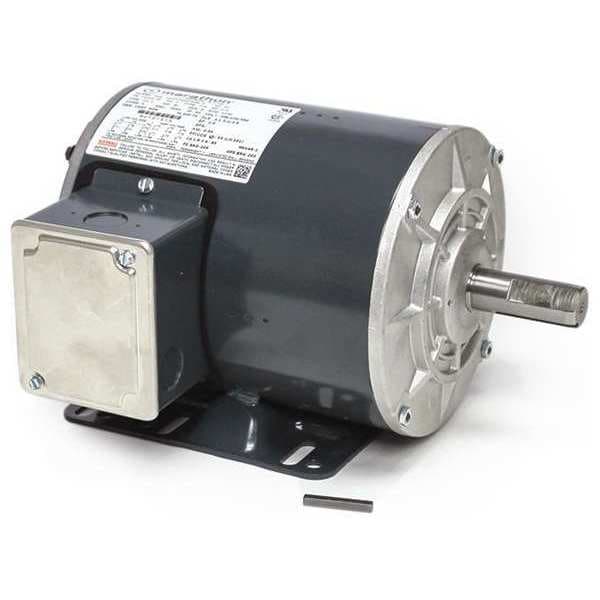

Fan and Blower Motor, 3/4 hp

  • Mfr # MOT1513

  • Zoro # G2492038

product price:
$
2,193.99
/ea
Free Shipping & Returns

Key Features

Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Shaft Dia.
7/8 in
Nameplate RPM
1200
Phase
Three
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOT1513
Zoro #
G2492038
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Overall Length
12 9/16 in
Shaft Length
1 1/2 in
Frame Size
143TZ
Shaft Diameter
7/8 in
Wire Rope Length
12 9/16 in
Length
12 9/16 in

Details

Item
Motor, 3/4 HP, 230-460V, 3 Phase, 1200 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Nameplate RPM
1200
Phase
Three
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
208V AC, 230V AC, 460V AC
Full Load Amps
3.2 A
RPM Range
1,101-1,200
HP
3/4 hp
Ins. Class
B
Motor Service Factor
1.15
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Design
Three-Phase
Motor Bearings
Ball
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Conduit Box Position
F1
Nominal Efficiency
74 %
Weight
70 lb
Compatible Brand
Trane
Product Type
Fan and Blower Motor
Motor Enclosure Type
Totally Enclosed Air-Over
Capacitor Required
Capacitor Not Required
Nameplate Service Factor @ 60 Hz
1.15
Duty
Continuous
Bearing Type
Ball
Full Load Current @ 60 Hz
3.1-3.2/1.6 A
Insulation Class
B

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,400 RPM, Voltage 208-230/460V AC, Full Load Amps 3.1-3.2/1.6 A, 143TZ Frame, Usable @ 208V Usable at 208V, Motor Service Factor 1.15, Ins. Class B, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
