Transair

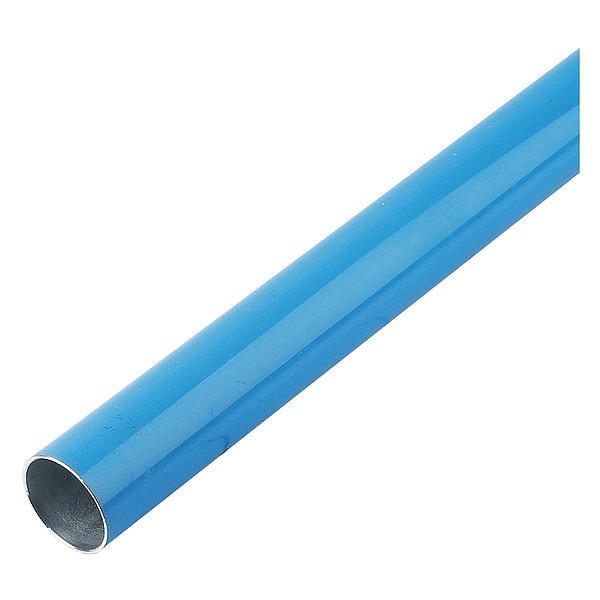

Tubing, Outside 1-1/2" dia., 232 psi

product price: $116.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Outside Dia. 1 1/2 in
  • Length 9 ft
  • Working Temp. (Deg. F) -4 Degrees to 140 Degrees
  • Features 100% Recyclable, Modular and Reusable, Optimum Flow Rate, Quick Connection Technology
  • Color Blue
See all product information

Product Information

Dimensions

Outside Dia. 1 1/2 in
Length 9 ft
Outside Diameter 1 1/2 in
Overall Length 9 ft

Details

Item Tubing
Working Temp. (Deg. F) -4 Degrees to 140 Degrees
Features 100% Recyclable, Modular and Reusable, Optimum Flow Rate, Quick Connection Technology
Color Blue
Max. Vacuum (In. Hg) 29 39/64 in
Suitable For Compressed Air, Inert Gases, Vacuum
Standards ASME B31.1-31.9, CE Certified, EN 573.3, EN 755.2, EN 755.8, ISO 8573, ISO 9001, QUALICOAT, TUV Certification
Application Compressed Air, Industrial/Inert Gases, Vacuum
Type Pneumatic
Working Pressure (PSI) 232 psi
Material Aluminum
Maximum Operating Pressure 232 psi @ 73 Degrees F
Coating Color Blue
Petroleum Product Compatibility Mineral Oil
Industry Application Pneumatics
Finish/Coating Powder Coated
Maximum Operating Temperature 140 Degrees F
Material Trade Name Transair
Tube Form Straight
Cleaned and Capped No
Resistance Properties Corrosion Resistant
For Fluid Type Beverages, Compressed Air, Inert Gases
Material Grade 6063
Flow Application Aerospace, Automotive Assembly, Food and Beverage, Industrial Plants, Packaging
For Fitting Type Push to Connect
System of Measurement Inch
Minimum Operating Temperature -4 Degrees F
Temper T51
Vacuum Rated Vacuum Rated
Fabrication Seamless
Maximum Vacuum Pressure 3 in Hg

Description

Tubing, Application Compressed Air, Industrial/Inert Gases, Vacuum, Cleaned and Capped No, Coating Color Blue, Copper Tube Type Not Applicable, Fabrication Seamless, Material Aluminum, Material Grade 6063, Maximum Operating Pressure 232 psi @ 73 Degrees F, Maximum Operating Temperature 140 Degrees F, Outside Diameter 1 1/2 in, Overall Length 9 ft, Resistance Properties Corrosion Resistant
