ION Fast Ethernet Media Converter Module 100Base-TX to 100Base-FX

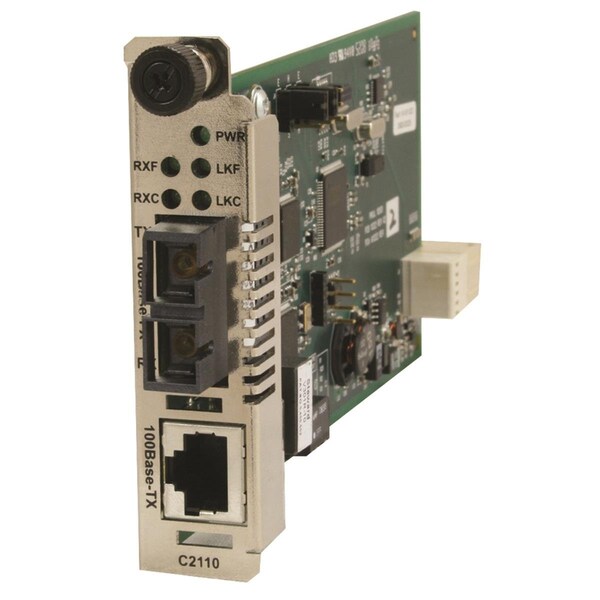

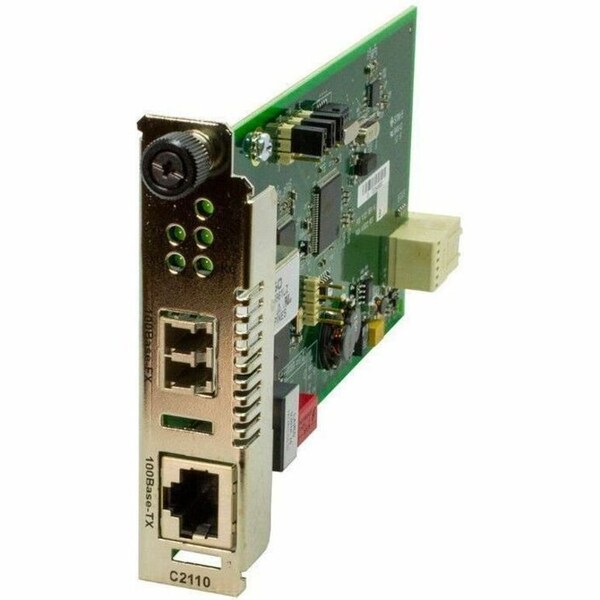

The ION C2110 is a media converter module that provides an interface between 100Base-TX ports and 100Base-FX ports allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1 the physical layer data is passed through the converter at line speed making it ideal for applications where low latency is essential. Features -Auto-Negotiation of speed and duplex on TP port -Auto-MDI MDIX on TP port -Link Pass Through -Far-End-Fault FEF detection -Automatic Link Restoration -Pause advertisement -Field Upgradeable Firmware -Can be used in any ION Platform Chassis -Standards based will link with any Standard 100Base-TX and any Standard 100Base-FX ports -Right Connector Type - LC multi-mode -Left Connector Type - RJ-45 -Fiber media converter -Data Transfer Rate - 100 Mbps -Data Link Protocol - Fast Ethernet -Compliant Standards - IEEE 802.3 -Max Transfer Distance - 1.2 miles -Optical Wave Length - 1300 nm
