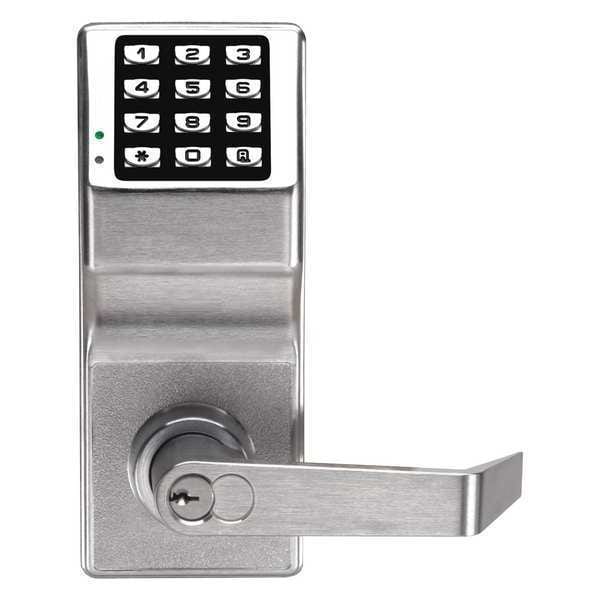

Trilogy Wireless Lock, Zinc Alloy, Remote DL2700LDIC US26D - main

Wireless Lock, Zinc Alloy, Remote

  • Mfr # DL2700LDIC US26D

  • Zoro # G7231178

product price: $679.78
/ea
Free Shipping & Returns

Key Features

Access Method
Keypad
Case Material
Brass
Height
8 in
Lock Material
Zinc
Width
3 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DL2700LDIC US26D
Zoro #
G7231178
UPC #
-
Country of Origin
Dominican Republic

Dimensions

Height
8 in
Width
3 1/4 in
Depth
1-11/16 in
Inside Width
3 1/4 in
Inside Depth
1 11/16 in
Inside Height
8 1/4 in
Overall Depth
2 9/16 in
Overall Height
8 in
Overall Width
3 1/4 in
Latch Front Length
2 1/4 in
Latch Front Width
1 1/8 in
Door Thickness - Maximum
1 7/8 in
Door Thickness - Minimum
1 5/8 in

Details

Item
Electronic Keyless Lock
Access Method
Keypad
Case Material
Brass
Lock Material
Zinc
Product Type
Electronic Keyless Lock
Includes
1 1/4 in x 4 7/8 in ASA Strike Plate, 1 1/8 in x 2 3/4 in T-Strike
ADA Compliant
Yes
Finish
Satin Chrome
Standards
CE, FCC Certified, Standard ANSI 161 Series Prep, UL Listed
Operating Temp. Range
-31 Degrees to 151 Degrees F
Battery Life
3 to 4 yr
Weather Resistant
Yes
Material
Zinc
Power Source
(5) AA Batteries
Features
Lockdown
Keypad Material
Metal
Backset
2 3/4 in
Key Override Options
Standard Core/Interchangeable Core
Fire Rating
3 hr
Timed Entry Allowance
5 to 20 sec
Lockset Function
Classroom, Passage
Includes Hardware
Hardware Included
Hand Orientation
Non-Handed
Cylinder Core Type
Small Format Interchangeable Core Cylinder
Operation Type
Push Button
Strike Type
ASA, T-Strike
Lockset Type
Electrical
Lever Style
Clutch
Temperature - Minimum
-31 Degrees F
ANSI/BHMA Finish
Satin Chromium-Plated
User Codes - Maximum
100
Locking/Unlocking Access - Inside
Push Button
Lockset Material
Brass, Stainless Steel
Lockset Handle Type
Lever
Temperature - Maximum
151 Degrees F

Description

Electronic Keyless Lock, Access Method Keypad, Lock Material Zinc, Finish Satin Chrome, Key Override Options Standard Core/Interchangeable Core, Keypad Material Metal, Power Source (5) AA Batteries, Battery Life 3 to 4 yr, Operating Temp. Range -31 Degrees to 151 Degrees F, Fire Rating 3 hr, ADA Compliant Yes, Standards CE, FCC Certified, Standard ANSI 161 Series Prep, UL Listed, Weather Resistant Yes
