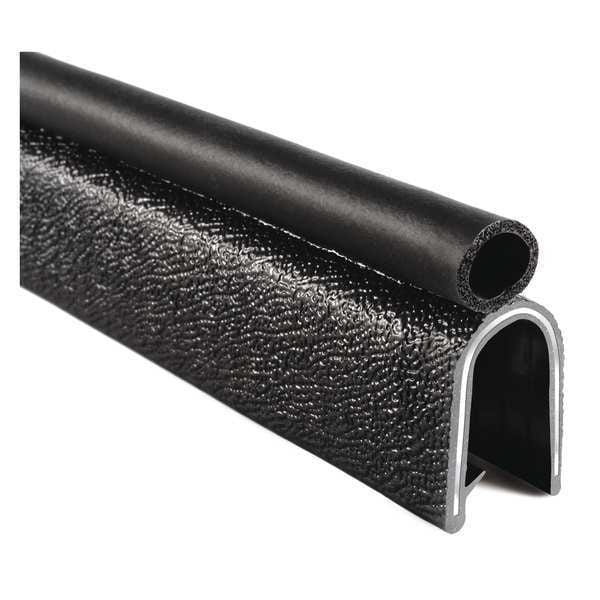

Trim Seal, EPDM, 100 ft Length, 1.437" Overall Width, Style: Trim with a Side Bulb

  • Mfr # 42000SB3X1/2C-100
  • Zoro # G4164021
product price:
$
373.99
/ea
Free Shipping & Returns

Key Features

Material
EPDM
Overall Height
1/2 in
Overall Width
1.437"
Style
Trim with a Side Bulb
Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
42000SB3X1/2C-100
Zoro #
G4164021
UPC #
-
Country of Origin
United States
Material
EPDM
Item
Trim Seal
Style
Trim with a Side Bulb
Color
Black
Max. Temp. (F)
158 Degrees F
Fits Edge
0.500 in
Standards
UL50E File MH49032
Application
Boats, Doors, Electrical, RVs, Trucks, Tool Boxes
Min. Temp. (F)
-20 Degrees F
Profile Shape
Top Bulb
Maximum Operating Temperature
158 Degrees F
Minimum Operating Temperature
-20 Degrees F
Fire Classification
FAA/FAR 25.853(a), FMVSS 302, UL94HB
Bulb Location
Bottom
Adhesive Type
Butyl Sealant, Hot Melt Glue
Number of Bulbs
1
Includes Core
Core Included
Hardness
85A
Operating Temperature - Minimum
-20 Degrees F
Outer Material
PVC
Bulb Material
EPDM
Product Type
Trim Seal
Operating Temperature - Maximum
150 Degrees F
Core Material
Aluminum
Texture
Pebble
Resistance Properties
Temperature Resistant, Ozone Resistant, UV Resistant, Water Resistant
Includes Bulb
Bulb Included
Series
2000
Wire Color
Black

Dimensions

Overall Height
1/2 in
Overall Width
1.437"
Length
100 ft
Leg Length
1 in
Bulb Dia.
0.437 in
For Material Thickness
0.500 in
Overall Length
100 ft
Outside Edge Trim Width
1 in
Inside Height
7/16 in
Inside Length
7/16 in
Bulb Diameter
7/16 in
For Material Thickness - Maximum
1/2 in
Trim Width
3/4 in
Wire Rope Length
100 ft

Description

Trim Seal, Application Boats, Doors, Electrical, RVs, Trucks, Tool Boxes, Bulb Location Bottom, Color Black, For Material Thickness 0.500 in, Hardness 85A, Inside Height 7/16 in, Material EPDM, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -20 Degrees F, Outside Edge Trim Width 1 in, Overall Height 1/2 in, Overall Length 100 ft, Profile Shape Top Bulb, Resistance Properties Temperature Resistant, Ozone Resistant, UV Resistant, Water Resistant
