  9. Analog Multimeter, 600 V, 30 A, 100 ohm

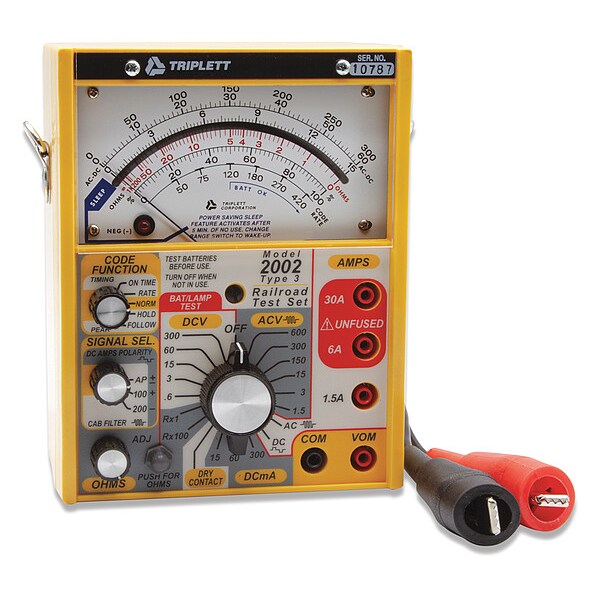

Triplett Analog Multimeter, 600 V, 30 A, 100 ohm 2012 - main

Analog Multimeter, 600 V, 30 A, 100 ohm

  • Mfr # 2012

  • Zoro # G7951535

product price: $2,054.99
/ea
Free Shipping & Returns

Key Features

Max. AC Volts
600 V
Overload Protector
Yes
Battery Type
9V, D
Accuracy
+/-3% Scale Length
Includes
Padded Water Repellent Carrying Case, Shoulder Strap, Test Leads
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2012
Zoro #
G7951535
UPC #
614395001155
Country of Origin
Taiwan, Province of China

Dimensions

Battery Size
9V; D
Overall Width
3.2 in
Manufacturers Warranty Length
1 yr
Overall Height
6.5 in

Details

Item
Analog Railroad Tester
Max. AC Volts
600 V
Overload Protector
Yes
Battery Type
9V, D
Accuracy
+/-3% Scale Length
Includes
Padded Water Repellent Carrying Case, Shoulder Strap, Test Leads
Max. DC Volts
300 V
AC Frequency Response
25 to 400 Hz
Max. AC Amps
30 A
Movement
100 Degree Deflection, Critically Damped, High Strength Magnet, Mirrored, Shock Mounted, Taut Band
Sensitivity
1,000 ohm/V
Max. DC Amps
30 A
Max. Ohms
1000 ohm
Mirrored Scale
Yes
Special Features
Auto Polarity in DC Functions, Base Unit with No Cab Filters, Auto and Selectable DC Amps Polarity, Direct Measurement of Code Parameters, Ohmmeter Voltage Mode Detects Foreign AC or DC Voltages, Peak Measurements Require No Adjustment, Relay Contact on Time (Dry Contact) Requires No Adjustment
Audible Continuity
No
Minimum AC Current Measurement
0 A
Batteries Included
Yes
Maximum DC Voltage Measurement
300 V
Basic DC Current Accuracy
+/-1.50%
Maximum Operating Temperature
185 Degrees F
Maximum DC Current Measurement
30 A
Minimum AC Voltage Measurement
1.5 V
Basic AC Current Accuracy
+/-1.50%
Minimum DC Voltage Measurement
0.6 V
Maximum AC Voltage Measurement
600 V
Maximum Resistance Measurement
100 ohm
Battery Voltage
1.5V DC; 9V DC
Maximum AC Current Measurement
30 A
Minimum Operating Temperature
-40 Degrees F
Calibration Certificate Included
No
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Maximum Storage Temperature
185 Degrees F
Resistance Measurement Accuracy
+/-2.00%
Basic DC Voltage Accuracy
+/-1.50%
Minimum Resistance Measurement
0 ohm
Basic AC Voltage Accuracy
+/-3.00%
Minimum Storage Temperature
-40 Degrees F
Minimum DC Current Measurement
1.5 A

Description

Analog Multimeter, Basic AC Current Accuracy +/-1.50 Percent, Resistance Measurement Accuracy +/-2.00 Percent, Basic DC Current Accuracy +/-1.50 Percent, AC Frequency Response 25 to 400 Hz, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Basic AC Voltage Accuracy +/-3.00 Percent, Basic DC Voltage Accuracy +/-1.50 Percent, Minimum AC Voltage Measurement 1.5 V, Maximum AC Voltage Measurement 600 V, Minimum DC Voltage Measurement 0.6 V
