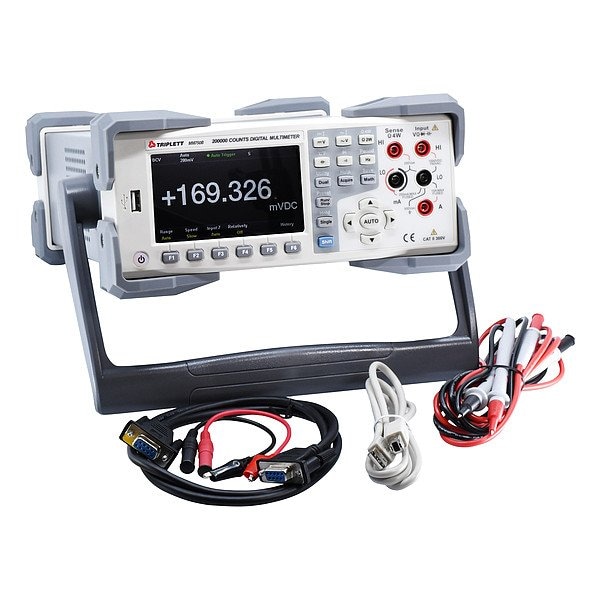

BenchDigitalMultimeter, 750VAC, 10A, 1MHz

Mfr # MM750B-NIST
Zoro # G222437827

1,576.99

Free Shipping & Returns

Key Features

Capacitance Measurement - Minimum

2 nF

Temperature Measurement - Minimum

32 Degrees F

Resistance Measurement - Maximum

100 megaohm

Digital Display Screen Type

LCD

DC Current Measurement - Minimum

200 uA

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: MM750B-NIST
Zoro #: G222437827
UPC #: 614395005283
Country of Origin: China

Dimensions

Overall Depth: 10.2 in
Manufacturers Warranty Length: 1 yr
Overall Height: 4.6 in
Overall Width: 13 in

Details

Capacitance Measurement - Minimum: 2 nF
Temperature Measurement - Minimum: 32 Degrees F
Resistance Measurement - Maximum: 100 megaohm
Digital Display Screen Type: LCD
DC Current Measurement - Minimum: 200 uA
Capacitance Measurement - Maximum: 2 mF
Instrument Counts: 200000
Resistance Measurement Accuracy: +/-0.01%
Resistance Measurement - Minimum: 200 ohm
Operating Temperature - Minimum: 32 Degrees F
AC Voltage Measurement - Maximum: 750 V
Item: Bench Digital Multimeter
AC Magnitude Calculation: True RMS
CAT Safety Rating: CAT II 300V
Basic AC Voltage Accuracy: +/-1.5%
Capacitance Measurement Accuracy: +/-2%
Basic AC Current Accuracy: +/-0.01%
Frequency Measurement - Maximum: 1 MHz
Includes: AC Power Cord, RS-232 Cable, Software, Test Leads, USB Cable
Basic DC Current Accuracy: +/-0.050%
Basic DC Voltage Accuracy: +/-0.012%
Temperature Measurement - Maximum: 1,832 Degrees F
AC Current Measurement - Maximum: 10 A
Interface: RS-232, USB
Temperature Types Measured: Temperature Degrees C, Temperature Degrees F
Voltage Units: mV, V
Calibration Certificate Included: NIST Traceable
AC Voltage Measurement - Minimum: 200 mV
Parameters Measured: AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Sound Level, Temperature
Frequency Measurement - Minimum: 20 Hz
AC Current Measurement - Minimum: 2 mA
Current Units: A, mA, uA
DC Current Measurement - Maximum: 10 A
DC Voltage Measurement - Minimum: 200 mV
Frequency Measurement Accuracy: +/-0.01%
DC Voltage Measurement - Maximum: 1,000 V
Temperature Measurement Accuracy: +/-0.16 Degrees C (RTD); 0.5 Degrees C (Thermocouple)
Operating Temperature - Maximum: 131 Degrees F
Standards: CE, RoHS

Description

Bench Digital Multimeter, RS-232, USB Interface, Includes AC Power Cord, RS-232 Cable, Software, Test Leads, USB Cable, Manufacturers Warranty Length 1 yr
