  9. DigitalClampMeter, TRMS, 400A, 1000VAC

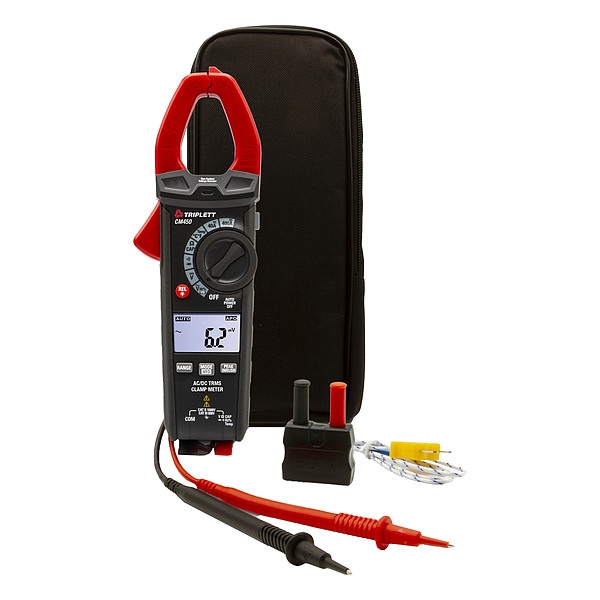

Triplett DigitalClampMeter, TRMS, 400A, 1000VAC CM450-NIST - main

DigitalClampMeter, TRMS, 400A, 1000VAC

  • Mfr # CM450-NIST

  • Zoro # G212469715

product price: $209.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Safety Rating
CAT III 600V
Jaw Opening
1.2 in
AC Response Calculation
TRMS
Capacitance Measurement Accuracy
+/-4.5% +/- 20 digits
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CM450-NIST
Zoro #
G212469715
UPC #
614395003333
Country of Origin
China

Dimensions

Overall Height
8.8 in
Battery Size
AAA
Manufacturers Warranty Length
1 yr
True RMS Bandwidth
2 kHz
Overall Width
3 in

Details

Item
Clamp Meter
Digital/Analog
Digital
Safety Rating
CAT III 600V
Jaw Opening
1.2 in
AC Response Calculation
TRMS
Capacitance Measurement Accuracy
+/-4.5% +/- 20 digits
Basic DC Current Accuracy
+/-2.0% +/- 8 digits
Auto Power Off
Yes
Batteries Included
Yes
Battery Voltage
1.5V
Minimum AC Voltage Measurement
4 V
Data Hold
Yes
Auto Ranging
Yes
Non-Contact Voltage Detector
Yes
Jaw Style
Clamp On
IP Rating
IP54
DC Voltage Measurement Resolution
1 mV
Minimum Storage Temperature
-4 Degrees F
DC Current Measurement Resolution
10 mA
Resistance Measurement Accuracy
+/-1.0% +/- 4 digits
Maximum Storage Temperature
140 Degrees F
Parameters Measured
AC Current, Capacitance, Continuity, DC Current, Diode, Frequency, Resistance, Temperature
Peak Hold
Yes
Audible Continuity
Yes
Instrument Counts
4,000
Calibration Certificate Included
Yes - NIST with Data
Maximum Resistance Measurement
40 megaohm
Minimum Operating Temperature
41 Degrees F
Waterproof
No
Capacitance Measurement Resolution
0.01 nF
Maximum AC Voltage Measurement
1,000 V
Standards
CE, cETLus Listed, RoHS
Maximum Frequency Measurement
100 kHz
Current Leakage Testing
No
Minimum AC Current Measurement
40 A
Frequency Counter
45 Hz to 1 kHz
Bluetooth Compatible
No
Diode Test
Yes
Thermometer Type
Type K Thermocouple
Minimum Capacitance Measurement
99.99 nF
Minimum DC Current Measurement
40 A
Resistance Measurement Resolution
0.1 ohm
Thermal Imaging
No
Memory
Data Hold
Maximum AC Current Measurement
400 A
AC Voltage Measurement Resolution
1 mV
Data Logging
No
Dustproof
No
Includes
(3) AAA Batteries, Carrying Case, Test Leads, Type K Thermocouple Probe
Minimum Resistance Measurement
400 ohm
Maximum DC Voltage Measurement
1,000 V
Maximum DC Current Measurement
400 A
Removable Screen
No
Basic AC Current Accuracy
+/-2.5%
Maximum Capacitance Measurement
100 mF
Special Features
Built-In Flashlight, Built-In Non-Contact Voltage Detector with LED, Captures Instantaneous Surge (Inrush) Current, Low Pass Filter (LPF), Relative Mode, True RMS
Basic AC Voltage Accuracy
+/-1.2% +/- 5 digits
Display Type
Backlit LCD
AC Current Measurement Resolution
10 mA
Inrush Current Measurable
Yes
Intrinsically Safe
No
Frequency Measurement Accuracy
+/-1.0% +/-5 digits
Minimum DC Voltage Measurement
4 V
Basic DC Voltage Accuracy
+/-1.0% +/- 3 digits
Battery Access
Yes
Minimum Frequency Measurement
10 Hz

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 400 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating Not Rated, Parameters Measured AC Current, Capacitance, Continuity, DC Current, Diode, Frequency, Resistance, Temperature, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging No
