  9. Insulation Tester, 250/500/1000V, Analog

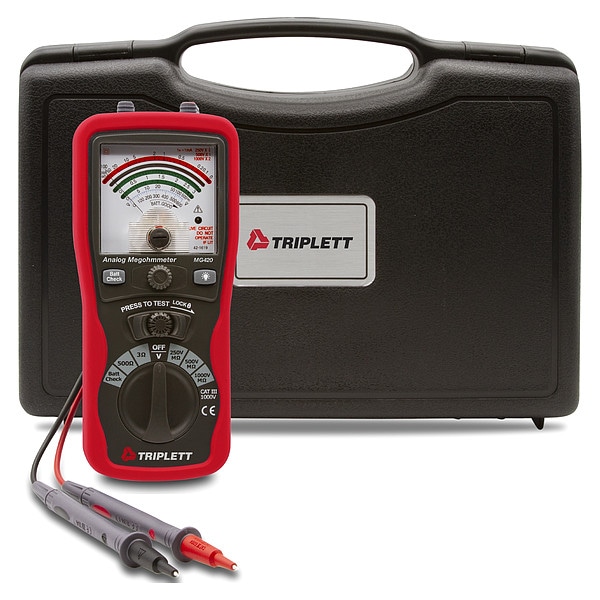

Triplett Insulation Tester, 250/500/1000V, Analog MG420 - main

Insulation Tester, 250/500/1000V, Analog

  • Mfr # MG420

  • Zoro # G401863270

product price: $199.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Hanging Strap, Hard Carrying Case, Heavy Duty Test Leads with Alligator Clip
Insulation Resistance Range
100 megaohm to 400 megaohm
Display
Analog
Accuracy
+/-5%
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MG420
Zoro #
G401863270
UPC #
614395003487
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AA
Tool Width
3.6 in
Tool Height
2 in
Manufacturer Warranty Length
1 yr
Tool Length
7.9 in

Details

Item
Insulation Tester
Power Source
Battery
Includes
Hanging Strap, Hard Carrying Case, Heavy Duty Test Leads with Alligator Clip
Insulation Resistance Range
100 megaohm to 400 megaohm
Display
Analog
Accuracy
+/-5%
Output Test Voltage
250/500/1000V
Live Circuit Detection
600VAC
Features
AC Voltage Measurement, Built-In Battery Check, Live Circuit LED Indicator, Lock Power Feature for Hands-Free Operation, Low Resistance Measurement
Auto Power Off
No
Safety Rating
CAT III 1000V
Resistance Range
0 to 500 ohms
Auto Ranging
No
Data Logging
No
Display Type
Analog
Parameters Measured
Insulation Resistance
Minimum DC Voltage Measured
250 V
Resistance Accuracy
+/-5.00%
Minimum Operating Temperature
0 Degrees F
Maximum Insulation Resistance
400 megaohm
Maximum Operating Temperature
104 Degrees F
Test Current
1 mA
Maximum AC Voltage Measured
1,000 V
Display Screen Type
No Display
Backlit Digital Display
No
Bluetooth Compatible
No
Data Logger
No
Insulation Resistance Resolution
100 megaohm, 200 megaohm, 400 megaohm
CAT Safety Rating
CAT IV 600V
Operating Voltage
600V AC
Input Impedance
1.2 megaohm
Minimum Insulation Resistance
100 megaohm
Testing Functions
Insulation
Number of Batteries Required
6
Test Voltage
1,000V DC, 250V DC, 500V DC
Includes Batteries
Yes
Standards
CE
Maximum DC Voltage Measured
1,000 V
Low Resistance Range
0 to 3 ohm

Description

Insulation Tester, Backlit Digital Display No, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Display Type Analog, Includes Hanging Strap, Hard Carrying Case, Heavy Duty Test Leads with Alligator Clip, Maximum Insulation Resistance 400 megaohm, Minimum Insulation Resistance 100 megaohm, Parameters Measured Insulation Resistance, Power Source Battery, Resistance Accuracy +/-5.00 Percent, Test Current 1 mA, Test Voltage 1,000V DC, 250V DC, 500V DC, Auto Power Off No, Auto Ranging No
