  5. Jaw Clamp Meter, LED, 200 A A, 0.6 in (15 mm) Jaw Capacity, CAT IV 600V Safety Rating

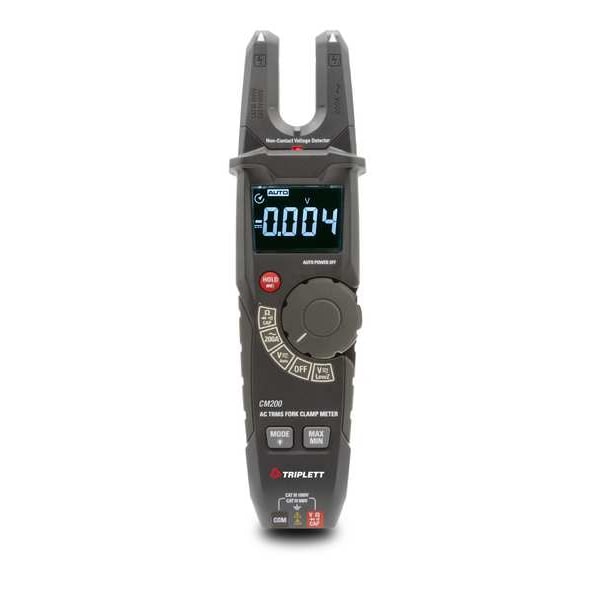

Triplett Jaw Clamp Meter, LED, 200 A A, 0.6 in (15 mm) Jaw Capacity, CAT IV 600V Safety Rating CM200 - main

Jaw Clamp Meter, LED, 200 A A, 0.6 in (15 mm) Jaw Capacity, CAT IV 600V Safety Rating

  • Mfr # CM200

  • Zoro # G901209202

product price:  $99.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
200 A
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
60 megaohm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CM200
Zoro #
G901209202
UPC #
614395003012
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
(2) AA

Details

Item
Jaw Clamp Meter
Digital/Analog
Digital
Max. AC Amps
200 A
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
60 megaohm
Jaw Capacity
0.6 in (15 mm)
Temp. Range
No Temp
Safety Rating
CAT IV 600V
Display
LED
Jaw Opening
0.6 in
Max. AC Volts
1,000 V
Capacitance
4 mF
Non-Contact Voltage Detector
Yes
Calibration Certificate
Available Separately
Includes
(2) AA Batteries, Carrying Case, Test Leads
AC Response
TRMS
Audible Continuity
Yes
Memory
Data Hold
Standards
CE, ETL, RoHS
Data Hold
Yes
Peak Hold
No
Bar Graph
No
Diode Test
Yes
Special Features
Built-in Flashlight, LoZ Impedance Mode for Identifying Ghost Voltage
Battery Type
(2) AA
AC Current Accuracy
+/-3.0%
Counts
6,000
Auto Power Off
Yes
Maximum AC Voltage Measurement
1,000 V
Calibration Certificate Included
Available Separately
Maximum AC Current Measurement
200 A
Maximum Resistance Measurement
60 megaohm
Maximum Capacitance Measurement
4 mF
Jaw Style
Clamp-Jaw
Maximum DC Voltage Measurement
1,000 V
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage
Display Type
LED
AC Response Calculation
TRMS
Bar Graph Included
No

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 200 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 0 A, Maximum DC Voltage Measurement 1,000 V, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Intrinsically Safe No, Data Logging No, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No, Jaw Opening 0.6 in, Jaw Style Clamp

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
