Shop TRIPLETT

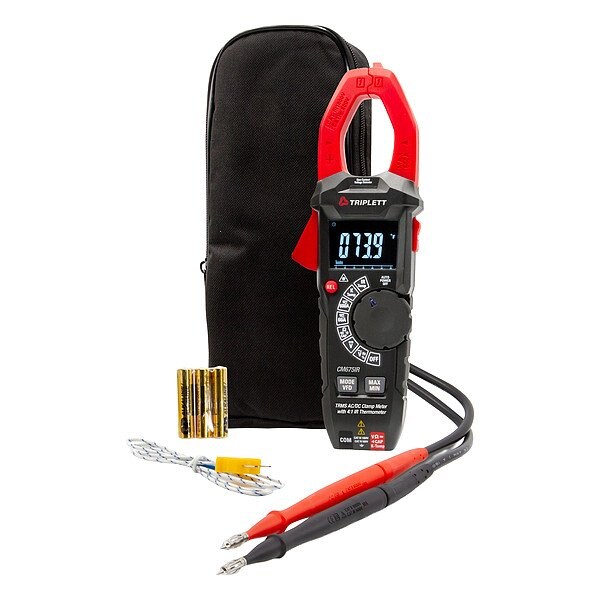

DigitalClampMeter, TRMS, 600A, 1000VAC

  • Mfr # CM675IR-NIST

  • Zoro # G622438905

product price:
$
340.99
/ea
Free Shipping & Returns

Key Features

AC Current Measurement Resolution
0.01 A
Diode Test
Yes
Includes
(3) Batteries, Carrying Case, Test Leads, Type K Thermocouple Bead Probe
Jaw Style
Clamp
Time of Day Clock
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CM675IR-NIST
Zoro #
G622438905
UPC #
614395004996
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AAA
Overall Width
2.6 in
True RMS Bandwidth
1,000 Hz
Overall Height
9.4 in

Details

AC Current Measurement Resolution
0.01 A
Diode Test
Yes
Includes
(3) Batteries, Carrying Case, Test Leads, Type K Thermocouple Bead Probe
Jaw Style
Clamp
Time of Day Clock
No
Temperature Types Measured
Infrared Temperature, Temperature K
Inrush Current Measurable
No
Peak Hold
No
Maximum AC Current Measurement
600 A
DC Current Measurement Resolution
0.01 A
Minimum Operating Temperature
41 Degrees F
Removable Screen
No
Display Type
LCD
Instrument Counts
6,000
Battery Voltage
1.5 V
IP Rating
Not Rated
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Non-Contact Voltage, Resistance, Temperature
Maximum Storage Temperature
140 Degrees F
Maximum DC Voltage Measurement
1,000 V
Non-Contact Voltage Detector
Yes
Maximum Frequency Measurement
10 kHz
Maximum Capacitance Measurement
99.99 mF
Multiple On-Screen Displays
No
Audible Continuity
Yes
Battery Access
Yes
DC Voltage Measurement Resolution
0.1 mV
Software Included
No
Resistance Measurement Resolution
0.1 ohm
AC Voltage Measurement Resolution
0.001 V
Minimum Frequency Measurement
5 Hz
Resistance Measurement Accuracy
+/-2.8%
Basic AC Voltage Accuracy
+/-1.5%
Minimum AC Current Measurement
60 A
Data Hold
Yes
CAT Safety Rating
CAT IV 600V
Auto Power Off
Yes
Minimum Resistance Measurement
600 ohm
Basic DC Current Accuracy
+/-2.8%
Batteries Included
Yes
Maximum DC Current Measurement
600 A
Minimum DC Current Measurement
60 A
Memory
Min/Max
Current Leakage Testing
No
AC Response Calculation
TRMS
Minimum Storage Temperature
-4 Degrees F
Jaw Opening
1.3 in
Capacitance Measurement Resolution
0.1 nF
Capacitance Measurement Accuracy
+/-6%
Includes Auto Sensing
No Auto Sensing Included
Voltage Units
mV, V
Basic DC Voltage Accuracy
+/-1.2%
Standards
CE, RoHS
Current Units
A
Maximum AC Voltage Measurement
1,000 V
Bar Graph Included
Yes
Special Features
lEBTN Display, Non-Contact Temperature Measurement, Target Identification
Minimum AC Voltage Measurement
6 V
Basic AC Current Accuracy
+/-1.5%
Frequency Measurement Accuracy
+/-1.5%
Calibration Certificate Included
NIST Traceable
Minimum Capacitance Measurement
999.9 nF
Thermometer Type
Infrared, Type K Thermocouple
Minimum DC Voltage Measurement
600 mV
Auto Ranging
Yes
Thermal Imaging
No
Maximum Resistance Measurement
60 megaohm
Frequency Measurement Resolution
0 Hz
Item
Digital Clamp Meter

Description

Digital Clamp Meter, Audible Continuity Yes, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 600 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Non-Contact Voltage, Resistance, Temperature, Intrinsically Safe Not Applicable
