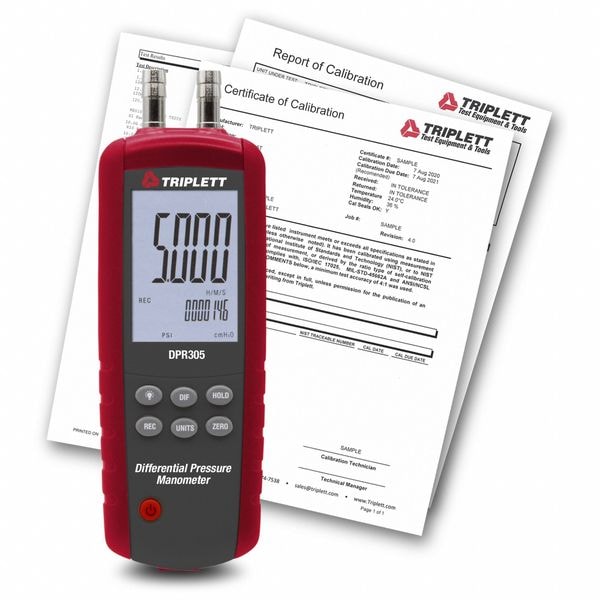

Triplett Manometer with NIST DPR305-NIST - main

Manometer with NIST

  • Mfr # DPR305-NIST

  • Zoro # G005687241

product price: $367.99
/ea
Free Shipping & Returns

Key Features

Includes
(3) AAA Batteries, Carrying Case, Sample Tubing, USB Cable (for Power Only)
Standards
CE
Accuracy
+/-0.3% of Full Scale
Pressure Accuracy
+/-0.3% of Full Scale
Battery Type
(3) AAA Batteries
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DPR305-NIST
Zoro #
G005687241
UPC #
614395004330
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Housing Length
2.4 in
Process Connection Size
1/4 in
Housing Height
7.2 in
For Tubing Diameter
1/4 in, 1/2 in
Battery Size
AAA

Details

Item
Manometer with NIST
Includes
(3) AAA Batteries, Carrying Case, Sample Tubing, USB Cable (for Power Only)
Standards
CE
Accuracy
+/-0.3% of Full Scale
Pressure Accuracy
+/-0.3% of Full Scale
Battery Type
(3) AAA Batteries
Pressure Resolution
0.01 psi
Pressure Range
0.001 psi to 20 psi
Alarm
No
Calibration Certificate Included
NIST
Weight
8.4 oz
NIST Traceable Certificate
Yes
Maximum Pressure
20 psi
Batteries Required
Yes
Low Battery Indicator
Yes
Digital Display Features
Backlit LCD
Batteries Included
Yes
Data Hold
Yes
Number of Pressures Measured
Dual
Process Connection Type
Hose Barb
Auto Power Off
Yes
Display Units
psi
Type of Pressure
Differential
Min/Max Capture
Yes
Minimum Pressure
0 psi
Series
Triplett DPR
Data Interface
USB
Application
Use Both Inputs to Measure the Differential Pressure between Two Points of a Single Source or between 2 Sources Revealing which Input has the Higher Pressure and the Difference between them; Use One Input to Measure Gauge Pressure of a Single Source
Housing Material
Plastic
NEMA Rating
Not Rated
Minimum Operating Temperature
32 Degrees F
Storage Temperature Range
14 Degrees to 140 Degrees F
IP Rating
Not Rated
Intrinsically Safe
No
Wireless Connectivity
No
Maximum Operating Temperature
122 Degrees F
Maximum Operating Pressure
138.4 inH2O
Process Connection Material
Metal
Number of Connections
2
Operating Pressure Range
-138.4 to 138.4 inH20
Housing Color
Red/Black
Operating Temperature - Minimum
32 Degrees F
Includes Low Battery Indicator
Low Battery Indicator
Intrinsic Safety
Not Specified Intrinsically Safe
Includes Data Hold
Data Hold
Number of Process Connections
2
Includes Alarm
No Alarm Included
Number of Batteries Required
3
Pressure Type Measured
Differential
Includes Data Logging
No Data Logging Included
Includes Batteries
Batteries Included
Includes NIST-Traceable Calibration Certificate
NIST-Traceable Calibration Certificate Included
Pressure Stages Measured
Dual
Operating Temperature - Maximum
122 Degrees F
Pressure Measurement - Maximum
20 psi
Operating Pressure - Maximum
20 psi
Pressure Measurement - Minimum
0 psi
Digital Display Type
Backlit LCD
Includes Min/Max Capture
Min/Max Capture

Description

Manometer with NIST, Maximum Pressure 20 psi, Minimum Pressure 0 psi, Accuracy +/-0.3 Percent of Full Scale, Process Connection Size 1/4 in, Process Connection Type Hose Barb, Batteries Included Yes, Digital Display Features Backlit LCD, NIST Traceable Certificate Yes, Series Triplett DPR, Wireless Connectivity No, Alarm No, Auto Power Off Yes, Batteries Required Yes, Battery Type (3) AAA Batteries, Calibration Certificate Included NIST, Data Hold Yes, Data Interface USB
