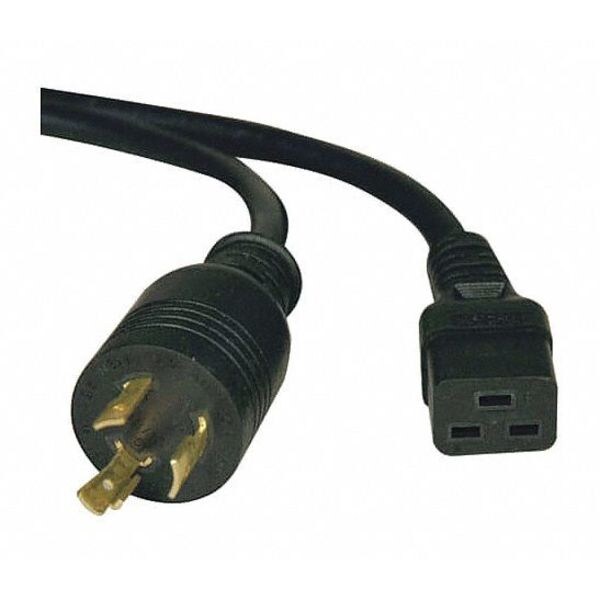

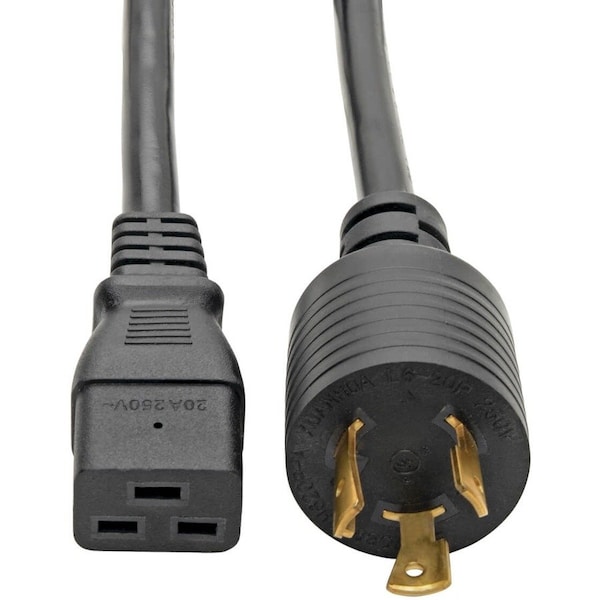

Tripp Lite 10- 12Pwg Power Cord P040-010 - main

10- 12Pwg Power Cord

  • Mfr # P040-010

  • Zoro # G0834517

product price:  $56.65
/ea

Key Features

Max. Amps
20 A
Number of Conductors
3
Cord Length
10 ft.
Wire Size
12 AWG
Voltage
250V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P040-010
Zoro #
G0834517
UPC #
037332140951
Country of Origin
China

Dimensions

Cord Length
10 ft.
Wire Size
12 AWG
Unit Dimensions (hwd / in.)
10.980 x 7.000 x 0.500
Cable Length (ft.)
10
Cable Outer Diameter (OD)
11mm

Details

Item
Power Supply Cord
Max. Amps
20 A
Number of Conductors
3
Voltage
250V AC
Connection Type
IEC-320 C19
Jacket Color
Black
Jacket Material
Rubber
Jacket Material - Wire and Cable
Rubber
Connector End - Wire and Cable
IEC-320 C19
Wire and Cable Item
Power Cord
Description/Special Features
High Voltage; Locking Plug
Connector End (Wire and Cable)
IEC-320 C19
NEC Cord Designation
SJT
Voltage Rating
250 V AC
Color
Black
End 2 Connection Type
IEC-320-C19
End 1 Connection Type
NEMA L6-20P
Additional Information
Fully molded ends, 12ga Copper conductors
Product Color
Black
Frequency
50 Hz
Product Name
P040-010 Standard Power Cord
Package Contents
P040-010 Standard Power Cord, 10-ft. C19 to L6-20P Power Cable
Cable Jacket Rating
VW-1
Side B - Connector 1
IEC-320-C19
High Voltage
Yes
Maximum Input Amps
20
Storage Humidity Range
10% to 65% RH
Side A - Connector 1
NEMA L6-20P
Relative Humidity
10% to 65% RH, Non-Condensing
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Product Certifications
cUL Listed; UL Listed
Cable Jacket Color
Black
Voltage Compatibility (VAC)
250
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Device Compatibility
Server; Router; Network Switch; UPS; PDU
Power Cord Jacket Type
SJT
Cable Jacket Material
PVC
Wire Gauge (AWG)
12
Package Includes
P040-010 C19 to L6-20P Power Cord, 10-ft. (3.05 m), Black
Locking Plug
Yes

Description

Power Supply Cord, Jacket Color Black, Connection Type IEC-320 C19
