  6. Cat5e Cable, Cross-over, Yellow, 25ft
Tripp Lite Cat5e Cable, Cross-over, Yellow, 25ft N010-025-YW - main

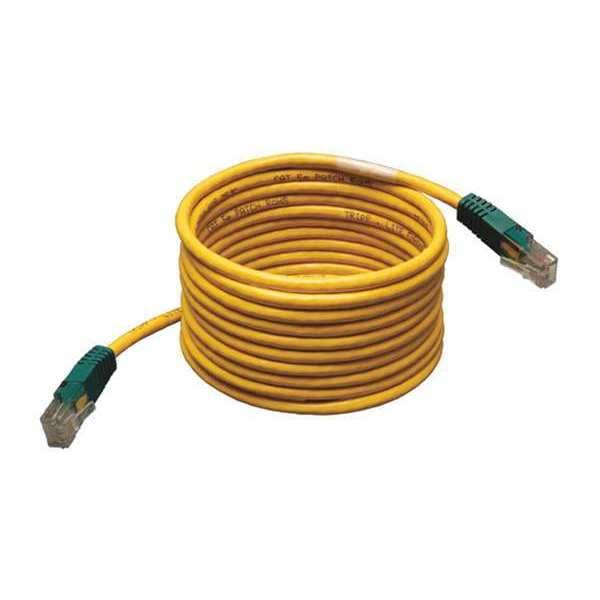

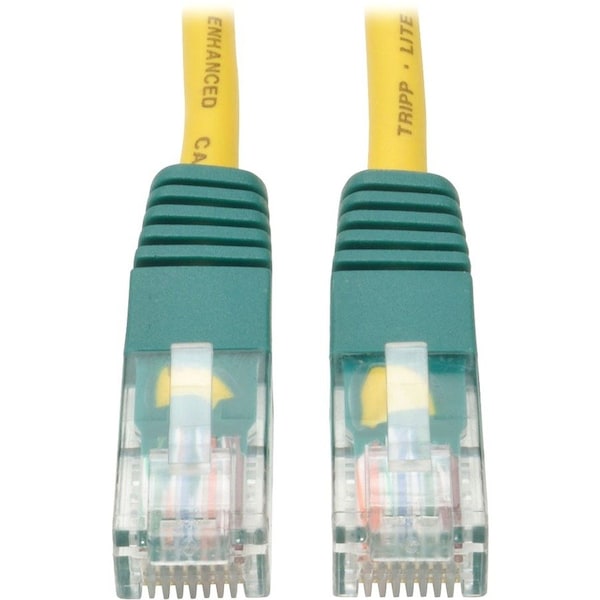

Cat5e Cable, Cross-over, Yellow, 25ft

  • Mfr # N010-025-YW

  • Zoro # G5185671

product price:  $7.39
/ea
Sold in multiples of 2 for $14.78

Key Features

Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Length - Patch Cord
25 ft
Transmission Speed
1 Gbps
Cable Jacket Color
Yellow
Cable Jacket Material
PVC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
N010-025-YW
Zoro #
G5185671
UPC #
037332164124
Country of Origin
China

Dimensions

Length - Patch Cord
25 ft
Cable Length
25 ft
Bandwidth per TIA Standard
100 MHz
Cable Length (ft.)
25
Maximum Bandwidth as Tested
350 MHz
Cable Outer Diameter (OD)
5.0 mm

Details

Item
Cat5e Cable,Cross-over,Yellow,25ft
Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Transmission Speed
1 Gbps
Cable Jacket Color
Yellow
Cable Jacket Material
PVC
Cable Type
Category 5e
Connector Type
Molded; Crossover
Jacket Color
Yellow
Category - Data Cable
5/5e
Jacket Material
Polyvinyl Chloride (PVC)
Shielded
No
Features
Stranded, Molded
Conductor Material
Stranded Copper
Solid / Stranded
Stranded
Shielding Type
UTP
Certifications & Standards
IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, ETL
Cable Configuration
Crossover
Connector on Second End Details
1 x RJ-45 Network - Male
Product Name
N010-025-YW Cat5e UTP Patch Cable
Device Supported
Network Device
Cable Characteristic
Patch Cable
Product Color
Yellow
Connector on First End Details
1 x RJ-45 Network - Male
Conductor
Copper
Product Type
Network Cable
IEEE Standards Supported
802.3ab; 802.3at
Conductor Gauge
26 AWG
Wiring Configuration
EIA/TIA 568B to EIA/TIA 568A
Cable Shielding
UTP
PoE Type
Type 2 PoE+ (30W, IEEE 802.3at)
Number of Conductors
4 Pair
Crossover Wiring
Yes
Power Over Cable (PoC) Support
No
Operating Humidity Range
0% to 90% RH, Non-Condensing
Cable Jacket Rating
CM
Network Compatibility
1 Gbps (Gigabit)
Operating Temperature Range
14° to 104°F (-10° to 40°C)
Product Certifications
UL Listed; cUL Listed
Contact Plating
Gold
Side B - Connector 1
RJ45 (MALE)
Side A - Connector 1
RJ45 (MALE)
Storage Temperature Range
5° to 122°F (-15° to 50°C)
Package Includes
25-ft. (7.62 m) Cat5e Yellow Crossover Molded Patch Cable
Technology
Cat5/5e
Product Compliance
CE (Europe); IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; UKCA
Storage Humidity Range
0% to 90% RH, Non-Condensing

Description

Cat5e Cable,Cross-over,Yellow,25ft
