  11. Cat5e Cable, Molded, Shielded, M/M, Gray, 7ft

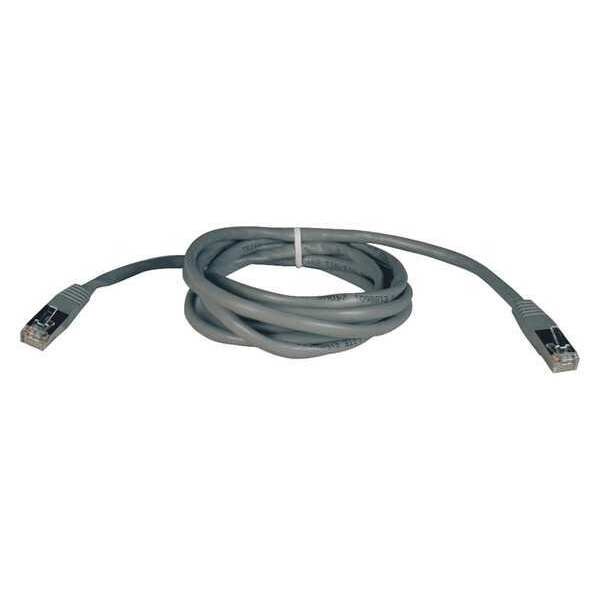

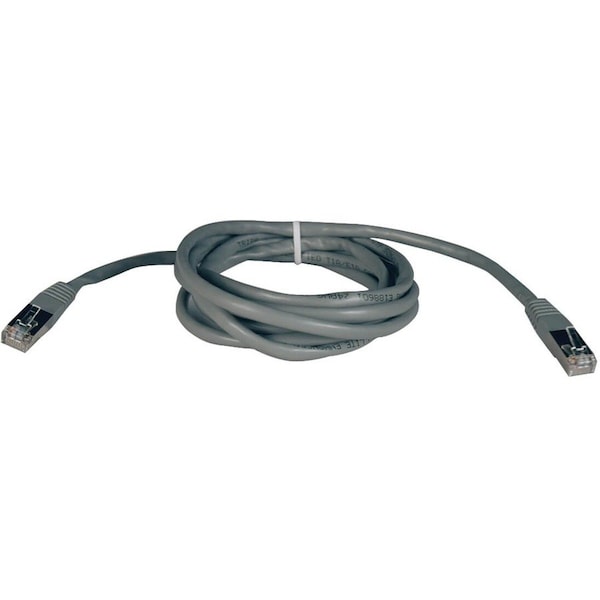

Tripp Lite Cat5e Cable, Molded, Shielded, M/M, Gray, 7ft N105-007-GY - main

Cat5e Cable, Molded, Shielded, M/M, Gray, 7ft

  • Mfr # N105-007-GY

  • Zoro # G5185507

product price: $5.19
/ea
Sold in multiples of 2 for $10.38

Key Features

Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Length - Patch Cord
7 ft
Transmission Speed
1 Gbps
Cable Jacket Color
Gray
Cable Jacket Material
PVC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N105-007-GY
Zoro #
G5185507
UPC #
037332124326
Country of Origin
China

Dimensions

Length - Patch Cord
7 ft
Cable Length
7 ft
Maximum Bandwidth as Tested
350 MHz
Cable Length (ft.)
7
Bandwidth per TIA Standard
100 MHz
Cable Outer Diameter (OD)
5.9 mm

Details

Item
Cat5e Cable,Molded,Shielded,M/M,Gray,7ft
Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Transmission Speed
1 Gbps
Cable Jacket Color
Gray
Cable Jacket Material
PVC
Cable Type
Category 5e
Shielded
Yes
Jacket Color
Gray
Category - Data Cable
5/5e
Connector Type
Molded
Jacket Material
Polyvinyl Chloride (PVC)
Features
Molded
Shielding Type
STP
Conductor Material
Stranded Copper
Solid / Stranded
Stranded
Certifications & Standards
UL, EIA/TIA-568B, TSB 568B (AT&T 258A)
Connector on First End Details
1 x RJ-45 - Male
Conductor
Copper
Product Name
Cat5e STP Patch Cable
Connector on Second End Details
1 x RJ-45 - Male
Package Contents
Cat5e STP Patch Cable, 7ft Gray Cat5e Shielded Patch Cable
Product Color
Gray
Cable Characteristic
Patch Cable
Product Type
Network Cable
Storage Temperature Range
5° to 122°F (-15° to 50°C)
Side B - Connector 1
RJ45 (MALE)
Network Compatibility
1 Gbps (Gigabit)
Storage Humidity Range
0% to 90% RH, Non-Condensing
Cable Jacket Rating
CM
IEEE Standards Supported
802.3ab; 802.3at
Product Compliance
CE (Europe); IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; UKCA
Operating Temperature Range
14° to 104°F (-10° to 40°C)
Conductor Gauge
24 AWG
Power Over Cable (PoC) Support
No
Contact Plating
Gold
Operating Humidity Range
0% to 90% RH, Non-Condensing
Side A - Connector 1
RJ45 (MALE)
Product Certifications
UL Listed; cUL Listed
Technology
Cat5/5e
PoE Type
Type 2 PoE+ (30W, IEEE 802.3at)
Wiring Configuration
EIA/TIA 568B
Package Includes
7-ft. (2.13 m) Gray Cat5e Shielded STP Patch Cable
Cable Shielding
STP
Number of Conductors
4 Pair

Description

Cat5e Cable,Molded,Shielded,M/M,Gray,7ft
