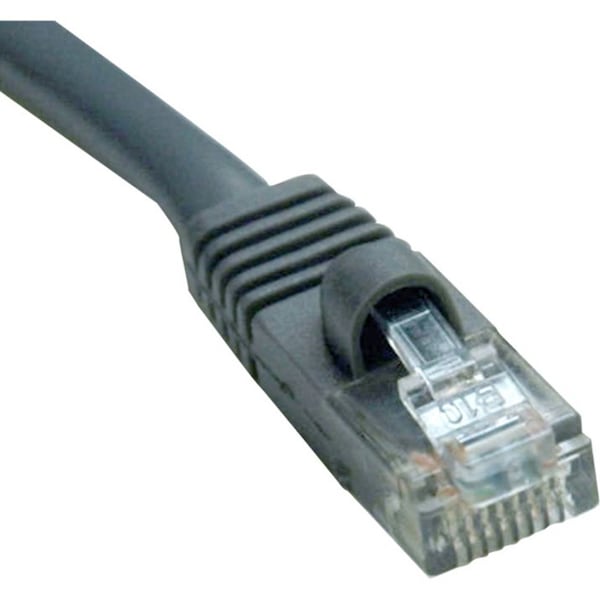

Shop TRIPP LITE

Cat5e Cable, Outdoor, Molded, Gray, 100ft

  • Mfr # N007-100-GY

  • Zoro # G5185741

product price:  $65.79
/ea

Key Features

Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Boot Type - Data cable
Snagless
Length - Patch Cord
100 ft
Cable Jacket Color
Gray
Cable Jacket Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
N007-100-GY
Zoro #
G5185741
UPC #
037332125682
Country of Origin
China

Dimensions

Length - Patch Cord
100 ft
Cable Length
100 ft
Maximum Bandwidth as Tested
350 MHz
Cable Length (ft.)
100
Bandwidth per TIA Standard
100 MHz
Cable Outer Diameter (OD)
5.5 mm
Cable Diameter
5.5 mm
Overall Length
100 ft
Wire Rope Length
100 ft

Details

Item
Cat5e Cable,Outdoor,Molded,Gray,100ft
Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Boot Type - Data cable
Snagless
Cable Jacket Color
Gray
Cable Jacket Material
PVC
Standards
CE, cUL Listed, IEEE, REACH, RoHS, UKCA, UL Listed
Cable Type
Category 5e
Boot Type
Snagless
Jacket Color
Gray
Connector Type
Molded
Category - Data Cable
5/5e
Shielded
Unshielded
Shielding
No
Jacket Material
PVC
Features
UV Resistant
Shielding Type
UTP
Solid / Stranded
Solid
Conductor Material
Solid Copper
Jacket Type
Duraflex, CMR, CMX
Certifications & Standards
UL, UL 444, EIA/TIA 568-B
Connector on Second End Details
1 x RJ-45 Network - Male
Material Details
Copper - Conductror
Device Supported
Network Device
Product Material
Copper
Product Name
Cat5E UTP Patch Network Cable
American Wire Gauge
24 AWG
Product Color
Gray
Conductor
Copper
Contact Plating
Gold
Connector on First End Details
1 x RJ-45 Network - Male
Cable Characteristic
Patch Cable
Product Type
Network Cable
Storage Humidity Range
0% to 90% RH, Non-Condensing
Cable Shielding
UTP
IEEE Standards Supported
802.3ab; 802.3at
Side B - Connector 1
RJ45 (MALE)
Technology
Cat5/5e
Product Certifications
UL Listed; cUL Listed
Side A - Connector 1
RJ45 (MALE)
PoE Type
Type 2 PoE+ (30W, IEEE 802.3at)
Number of Conductors
4 Pair
Conductor Gauge
24 AWG
Operating Temperature Range
14° to 104°F (-10° to 40°C)
Storage Temperature Range
5° to 122°F (-15° to 50°C)
Wiring Configuration
EIA/TIA 568B
Cable Jacket Rating
CMR; CMX
Product Compliance
CE (Europe); IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; UKCA
Power Over Cable (PoC) Support
No
Network Compatibility
1 Gbps (Gigabit)
Operating Humidity Range
0% to 90% RH, Non-Condensing
Package Includes
100-ft. (30.5 m) Outdoor Rated Cat5e Patch Cable
End 1 Connection Type
RJ45
End 2 Boot Type
Snagless
Supports Power over Ethernet
Supports Power Over Ethernet
Resistance Properties
UV Resistant
Transmission Speed
1 GBps
Maximum Frequency
350 MHz
End 1 Boot Type
Snagless
Maximum Operating Temperature
104 Degrees F
Includes Protective Cap
End 1 Protective Cap Included
Performance Category
5, 5e
End 2 Connection Type
RJ45
Minimum Operating Temperature
14 Degrees F
Fire Rating
Riser

Description

Cat5e Cable,Outdoor,Molded,Gray,100ft, Cable Shape Round, Conductor Gauge 24 AWG, Jacket Color Gray, Overall Length 100 ft, Performance Category 5, 5e, Shielded Unshielded, Fire Rating Riser, Jacket Material PVC, Standards CE, cUL Listed, IEEE, REACH, RoHS, UKCA, UL Listed, Transmission Speed 1 GBps, NEC Article and Type CMR, CMX, End 1 Boot Type Snagless, End 2 Boot Type Snagless, End 2 Connection Type RJ45, End 1 Connection Type RJ45, Cable Diameter 5.5 mm, Maximum Frequency 350 MHz
