- Item

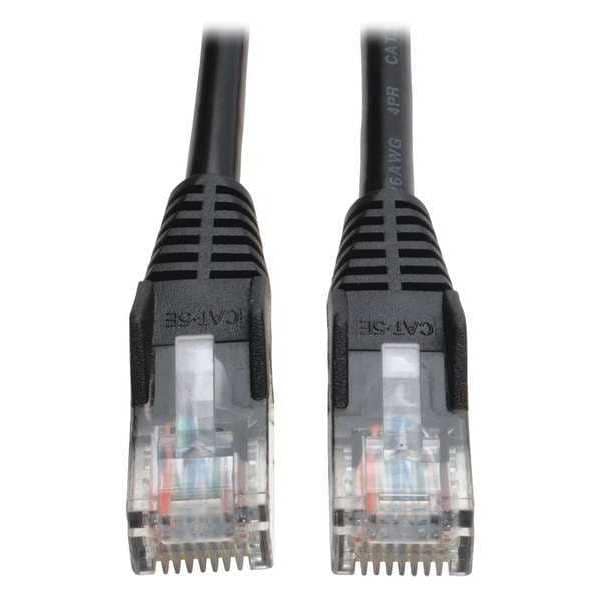

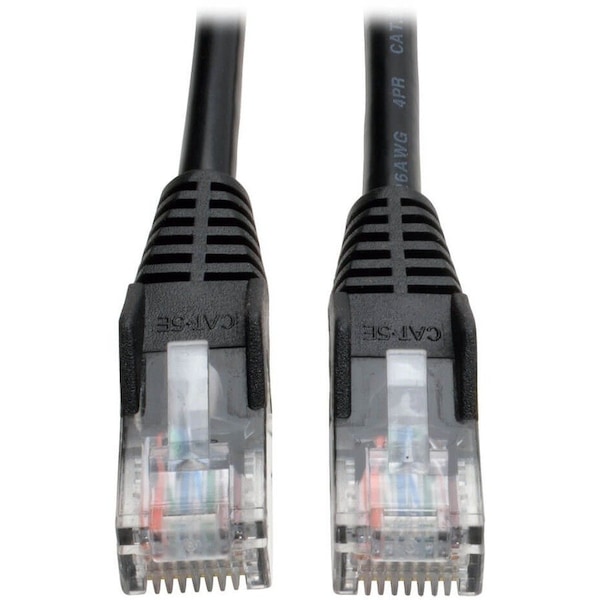

- Cat5e Cable,Snagless,Molded,Black,7ft
- Connector Type - Patch Cord
- RJ45 (Male); RJ45 (Male)
- Boot Type - Data cable
- Snagless
- Transmission Speed
- 1 Gbps
- Cable Jacket Color
- Black
- Cable Jacket Material
- PVC
- Cable Type
- Category 5e
- Shielded
- No
- Shielding
- No
- Jacket Color
- Black
- Category - Data Cable
- 5/5e
- Jacket Material
- Polyvinyl Chloride (PVC)
- Connector Type
- Molded; Snagless
- Boot Type
- Snagless
- Features
- Stranded, Strain Relief, Damage Resistant, Molded
- Shielding Type
- UTP
- Jacket Type
- CM
- Conductor Material
- Stranded Copper
- Solid / Stranded
- Stranded
- Conductor
- Copper
- Connector on First End Details
- 1 x RJ-45 Network - Male
- Product Material
- Copper
- Contact Plating
- Gold
- Connector on Second End Details
- 1 x RJ-45 Network - Male
- American Wire Gauge
- 26 AWG
- Product Type
- Network Cable
- Device Supported
- Network Device, ATM
- Product Name
- Cat5e UTP Patch Network Cable
- Cable Characteristic
- Patch Cable
- Data Transfer Rate
- 1 Gbit/s
- Material Details
- Copper - Conductor
- Number of Pairs
- 4
- Product Color
- Black
- Certifications & Standards
- Meets most current industry standards including: IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, ETL (category 5e draft 11)
- Additional Information
Cabling for category 5 (Cat5) and 5e (Cat5e) applications, Molded connectors with integral strain relief, Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation Applications: 1000Base-T (1Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, Voice, Token Ring Type3 applications
- IEEE Standards Supported
- 802.3ab; 802.3at
- Cable Jacket Rating
- CM
- Storage Temperature Range
- 5° to 122°F (-15° to 50°C)
- Side A - Connector 1
- RJ45 (MALE)
- Product Certifications
- UL Listed; cUL Listed
- Product Compliance
- CE (Europe); IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; UKCA
- Network Compatibility
- 1 Gbps (Gigabit)
- Storage Humidity Range
- 0% to 90% RH, Non-Condensing
- Package Includes
- 7-ft. (2.13 m) Black Snagless Cat5e Patch Cable
- Technology
- Cat5/5e
- Conductor Gauge
- 26 AWG
- PoE Type
- Type 2 PoE+ (30W, IEEE 802.3at)
- Number of Conductors
- 4 Pair
- Side B - Connector 1
- RJ45 (MALE)
- Operating Humidity Range
- 0% to 90% RH, Non-Condensing
- Power Over Cable (PoC) Support
- No
- Wiring Configuration
- EIA/TIA 568B
- Cable Shielding
- UTP
- Operating Temperature Range
- 14° to 104°F (-10° to 40°C)
