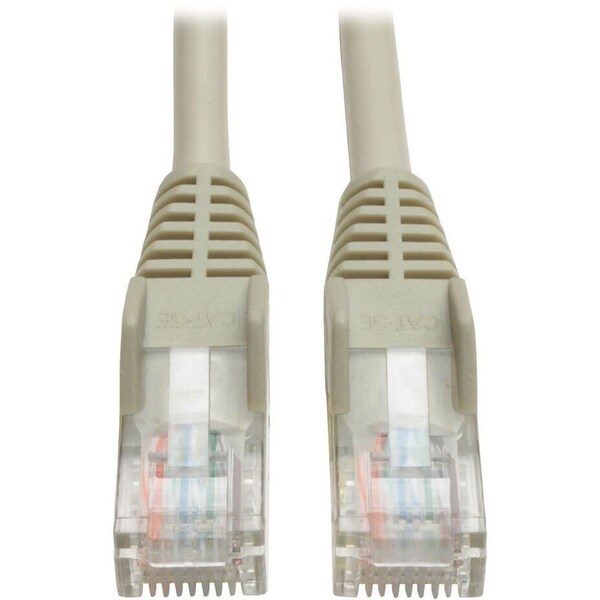

Cat5e Cable, Snagless, Molded, Gray, 150ft

Cat5e Cable, Snagless, Molded, Gray, 150ft

Mfr # N001-150-GY
Zoro # G5186417

$43.79

Key Features

Connector Type - Patch Cord

RJ45 (Male); RJ45 (Male)

Boot Type - Data cable

Snagless

Length - Patch Cord

150 ft

Transmission Speed

1 Gbps

Cable Jacket Color

Gray

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

N001-150-GY

Zoro #

G5186417

UPC #

037332041913

Country of Origin

China

Dimensions

Length - Patch Cord

150 ft

Cable Length

150 ft

Maximum Bandwidth as Tested

350 MHz

Cable Outer Diameter (OD)

5.0 mm

Bandwidth per TIA Standard

100 MHz

Cable Length (ft.)

150

Details

Item

Cat5e Cable,Snagless,Molded,Gray,150ft

Connector Type - Patch Cord

RJ45 (Male); RJ45 (Male)

Boot Type - Data cable

Snagless

Transmission Speed

1 Gbps

Cable Jacket Color

Gray

Cable Jacket Material

PVC

Standards

For 1000 Base-T (1Gbps Ethernet), 10/100 Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type 3 applications

Cable Type

Category 5e

Connector Type

Molded; Snagless

Category - Data Cable

5/5e

Shielded

Jacket Color

Gray

Solid / Stranded

Solid

Conductor Material

Solid Copper

Shielding Type

UTP

Cable Characteristic

Patch Cable

Product Type

Network Cable

Certifications & Standards

Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e draft 11)

Conductor

Copper

Product Color

Gray

Product Name

N001-150-GY Cat5e Patch Cable

Additional Information

Cabling for category 5 (Cat5) and 5e (Cat5e) applications, Length: 150- Ft. Color: gray Connectors: RJ45 male, Feature molded connectors with integral strain relief, Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation, PVC 4-pair stranded UTP, Rated for 350MHz/ 1Gbps communication, Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e draft 11), Available in other colors and lengths, Also available without the snagless feature (N002 series), Also available - Cat6 cables (N201 series), Warranteed to be free from defects in materials and workmanship for life

Package Contents

N001-150-GY Cat5e Patch Cable, 150-ft. Gray Snagless Cat5e Patch Cable

Connector on First End Details

2 x RJ-45 - Male

Technology

Cat5/5e

Cable Jacket Rating

Network Compatibility

1 Gbps (Gigabit)

Wiring Configuration

EIA/TIA 568B

Package Includes

150-ft. Gray Snagless Cat5e Patch Cable

Number of Conductors

4 Pair

Side A - Connector 1

RJ45 (MALE)

Product Compliance

CE (Europe); IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; UKCA

Contact Plating

Gold

Operating Temperature Range

14° to 104°F (-10° to 40°C)

Power Over Cable (PoC) Support

IEEE Standards Supported

802.3ab; 802.3at

Storage Temperature Range

5° to 122°F (-15° to 50°C)

Conductor Gauge

26 AWG

Storage Humidity Range

0% to 90% RH, Non-Condensing

Side B - Connector 1

RJ45 (MALE)

Product Certifications

UL Listed; cUL Listed

Cable Shielding

UTP

Operating Humidity Range

0% to 90% RH, Non-Condensing

PoE Type

Type 2 PoE+ (30W, IEEE 802.3at)

Description

Cat5e Cable,Snagless,Molded,Gray,150ft
