  11. Cat5e Cable, Snagless, Molded, M/M, Gray, 5ft

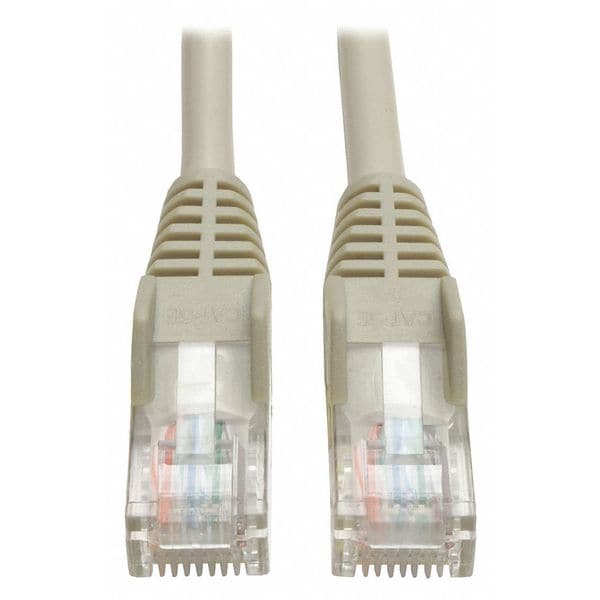

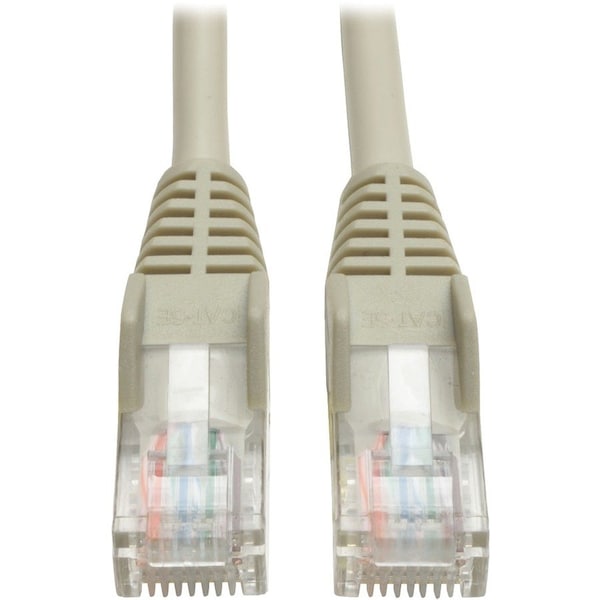

Tripp Lite Cat5e Cable, Snagless, Molded, M/M, Gray, 5ft N001-005-GY - main

Cat5e Cable, Snagless, Molded, M/M, Gray, 5ft

  • Mfr # N001-005-GY

  • Zoro # G5187099

product price: $2.59
/ea
Sold in multiples of 4 for $10.36

Key Features

Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Boot Type - Data cable
Snagless
Length - Patch Cord
5 ft
Transmission Speed
1 Gbps
Cable Jacket Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N001-005-GY
Zoro #
G5187099
UPC #
037332099914
Country of Origin
China

Dimensions

Length - Patch Cord
5 ft
Cable Length
5 ft
Cable Outer Diameter (OD)
5.0 mm
Maximum Bandwidth as Tested
350 MHz
Cable Length (ft.)
5
Bandwidth per TIA Standard
100 MHz

Details

Item
Cat5e Cable,Snagless,Molded,M/M,Gray,5ft
Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Boot Type - Data cable
Snagless
Transmission Speed
1 Gbps
Cable Jacket Color
Gray
Cable Jacket Material
PVC
Cable Type
Category 5e
Connector Type
Molded; Snagless
Jacket Material
Polyvinyl Chloride (PVC)
Jacket Color
Gray
Category - Data Cable
5/5e
Shielded
No
Solid / Stranded
Stranded
Conductor Material
Stranded Copper
Shielding Type
UTP
Product Type
Network Cable
Connector on First End Details
1 x RJ-45 - Male
Product Name
Cat5e Patch Cable
Certifications & Standards
IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, ETL (category 5e draft 11)
Product Color
Gray
Connector on Second End Details
1 x RJ-45 - Male
Conductor
Copper
Cable Characteristic
Patch Cable
Package Contents
Cat5e Patch Cable, 5-ft. Gray Snagless Cat5e Patch Cable
Additional Information
Application : For 1000Base-T (1Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type3 applications.
Cable Jacket Rating
CM
Package Includes
5-ft. (1.52 m) Gray Snagless Cat5e Patch Cable
Cable Shielding
UTP
Conductor Gauge
26 AWG
Contact Plating
Gold
Network Compatibility
1 Gbps (Gigabit)
Number of Conductors
4 Pair
Wiring Configuration
EIA/TIA 568B
Side A - Connector 1
RJ45 (MALE)
Operating Humidity Range
0% to 90% RH, Non-Condensing
Technology
Cat5/5e
PoE Type
Type 2 PoE+ (30W, IEEE 802.3at)
IEEE Standards Supported
802.3ab; 802.3at
Product Compliance
CE (Europe); IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; UKCA
Storage Humidity Range
0% to 90% RH, Non-Condensing
Power Over Cable (PoC) Support
No
Operating Temperature Range
14° to 104°F (-10° to 40°C)
Storage Temperature Range
5° to 122°F (-15° to 50°C)
Side B - Connector 1
RJ45 (MALE)
Product Certifications
UL Listed; cUL Listed

Description

Cat5e Cable,Snagless,Molded,M/M,Gray,5ft
