  11. Cat6 Cable, Snagless, Molded, M/M, Blue, 10ft

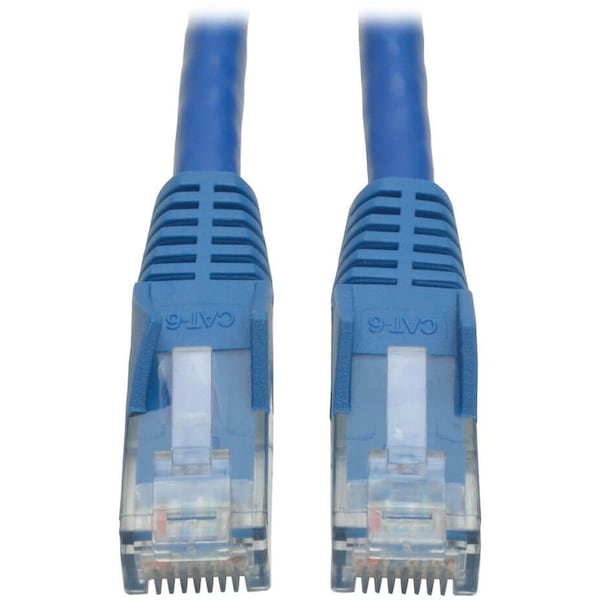

Tripp Lite Cat6 Cable, Snagless, Molded, M/M, Blue, 10ft N201-010-BL - main

Cat6 Cable, Snagless, Molded, M/M, Blue, 10ft

  • Mfr # N201-010-BL

  • Zoro # G5184877

product price: $6.19
/ea
Sold in multiples of 2 for $12.38

Key Features

Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Boot Type - Data cable
Snagless
Length - Patch Cord
10 ft
Transmission Speed
1 Gbps
Cable Jacket Color
Blue
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N201-010-BL
Zoro #
G5184877
UPC #
037332099891
Country of Origin
China

Dimensions

Length - Patch Cord
10 ft
Cable Length
10 ft
Cable Outer Diameter (OD)
6.0 mm
Maximum Bandwidth as Tested
500 MHz
Cable Length (ft.)
10
Bandwidth per TIA Standard
250 MHz

Details

Item
Cat6 Cable,Snagless,Molded,M/M,Blue,10ft
Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Boot Type - Data cable
Snagless
Transmission Speed
1 Gbps
Cable Jacket Color
Blue
Cable Jacket Material
PVC
Standards
EIA/TIA Cat6 TIA/EIA- 568-B-2.1
Cable Type
Category 6
Category - Data Cable
6
Boot Type
Snagless
Connector Type
Snagless; Molded
Shielding
No
Shielded
No
Jacket Color
Blue
Jacket Material
Polyvinyl Chloride (PVC)
Features
Strain Relief, Minimized Near-End Crosstalk (NEXT), Damage Resistant, Stranded, Molded
Jacket Type
CM
Shielding Type
UTP
Conductor Material
Stranded Copper
Solid / Stranded
Stranded
Product Name
Cat6 UTP Patch Network Cable
Conductor
Copper
Device Supported
Network Device, ATM
Data Transfer Rate
1 Gbit/s
Certifications & Standards
IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, ETL (category 6 draft 11)
Product Color
Blue
Number of Pairs
4
Product Type
Network Cable
Cable Characteristic
Patch Cable
Additional Information
Drastically reduce impedance & structural return loss compared to standard 100MHz wire., Integral strain relief, Applications : For 1000 Base-T (1Gbps Ethernet), 10/100 Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring TYPE 3 applications as well as EIA/TIA applications.
Material Details
Copper - Conductor
Product Material
Copper
Connector on First End Details
1 x RJ-45 Network - Male
Connector on Second End Details
1 x RJ-45 Network - Male
Contact Plating
Gold
American Wire Gauge
24 AWG
Package Includes
10-ft. Cat6 Blue Gigabit Patch Cord Snagless Molded
Number of Conductors
4 Pair
Operating Temperature Range
14° to 122°F (-10° to 50°C)
IEEE Standards Supported
802.3an; 802.3at
Side B - Connector 1
RJ45 (MALE)
Cable Shielding
UTP
Side A - Connector 1
RJ45 (MALE)
PoE Type
Type 2 PoE+ (30W, IEEE 802.3at)
Operating Humidity Range
0% to 90% RH, Non-Condensing
Wiring Configuration
EIA/TIA 568B
Technology
Cat6; PoE
Conductor Gauge
24 AWG
Cable Jacket Rating
CM
Storage Temperature Range
5° to 140°F (-15° to 60°C)
Product Certifications
UL Listed; cUL Listed
Storage Humidity Range
0% to 90% RH, Non-Condensing
Network Compatibility
1 Gbps (Gigabit)
Product Compliance
CE (Europe); IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; UKCA
Snagless Connector
Yes

Description

Cat6 Cable,Snagless,Molded,M/M,Blue,10ft
