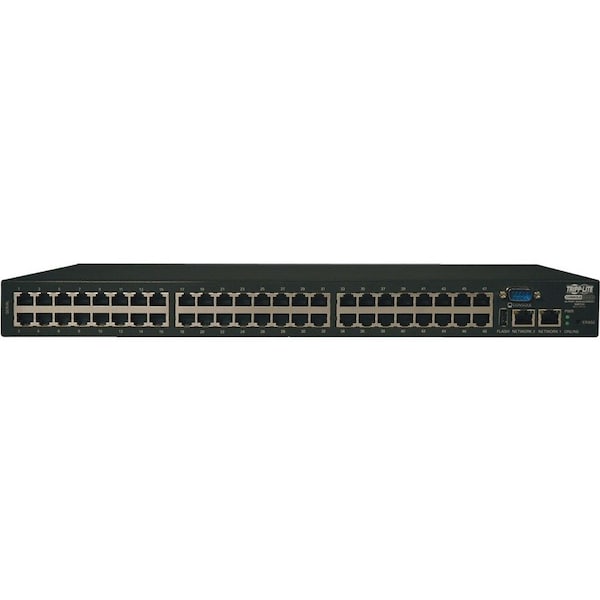

Tripp Lite Console Server, 48-Port Serial, Terminal B096-048 - main

Console Server, 48-Port Serial, Terminal

  • Mfr # B096-048

  • Zoro # G5195401

product price: $4,165.99
/ea
Free Shipping & Returns

Key Features

Color
Black
Product Type
Device Server
Additional Information
2 x C14 Power Ports, 100-240V AC, IP Remote Access, In-band (local Ethernet or secure tunnel over Internet), Out-of-band (dial-up modem access), V.92 Serial Data/Fax Embedded Modem 3.3V Model, 14.4K Fax, Additional Ethernet for broadband out-of-band connection, Local serial console accessOperating System: Linux with Source Code Access, Custom Development Kit
Product Name
B096-048 48-Port Serial Console Server Management Switch TAA Compliant
Management Port
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B096-048
Zoro #
G5195401
UPC #
037332148919
Country of Origin
United States

Dimensions

Unit Dimensions (hwd / in.)
1.750 x 17.400 x 12.500

Details

Item
Console Server,48-Port Serial,Terminal
Color
Black
Product Type
Device Server
Additional Information
2 x C14 Power Ports, 100-240V AC, IP Remote Access, In-band (local Ethernet or secure tunnel over Internet), Out-of-band (dial-up modem access), V.92 Serial Data/Fax Embedded Modem 3.3V Model, 14.4K Fax, Additional Ethernet for broadband out-of-band connection, Local serial console accessOperating System: Linux with Source Code Access, Custom Development Kit
Product Name
B096-048 48-Port Serial Console Server Management Switch TAA Compliant
Management Port
Yes
Ethernet Technology
Fast Ethernet
Media Type Supported
Twisted Pair
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Package Contents
B096-048 48-Port IP Console Server Management Switch, Rackmount hardware, 2 x 6ft, Cat5e Patch cables, 1 x DB9F - RJ45 Crossover Adapter, 1 x DB9F - RJ45 Straight-Through Adapter, 2 x 6ft, 5-15P to C13 Power cable
Form Factor
Rack-mountable
Number of RJ-11 Ports
1
TAA Compliant
Yes
Phone Line (RJ-11)
Yes
Network Standard
10/100Base-TX
Input Frequency
50/60HZ
Input Current
120V (0.11A) / 230V (0.06A)
Input Connection Type
2 x IEC-320-C14, Auto-Switching 100-240VAC
Multi-User
Yes
Maximum Input Amps
0.8
BTUs
120V: 68 BTU per hour
Storage Temperature Range
Non operating storage temperature: -30C to +60C (-20F to +140F)
Package Includes
B096-048 48-Port Serial Server with USB;(2) Cat5 patch cables, 6 ft.;DB9 to RJ45 straight connector;DB9 to RJ45 crossover connector;(2) C13 to NEMA 5-15P power cords, 6 ft.;Rack-mounting hardware;CD with owner's manual;Quick Start Guide
Operating Temperature
Ambient operating temperature: 5C to 50C (41F to 122F)
Number of Ports
48
IP Remote Access
Yes
Power Consumption (Watts)
20
Nominal Input Voltage(s) Supported
100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Relative Humidity
Humidity: 5% to 90%
Network Compatibility
100 Mbps (Fast Ethernet)

Description

Console Server,48-Port Serial,Terminal
