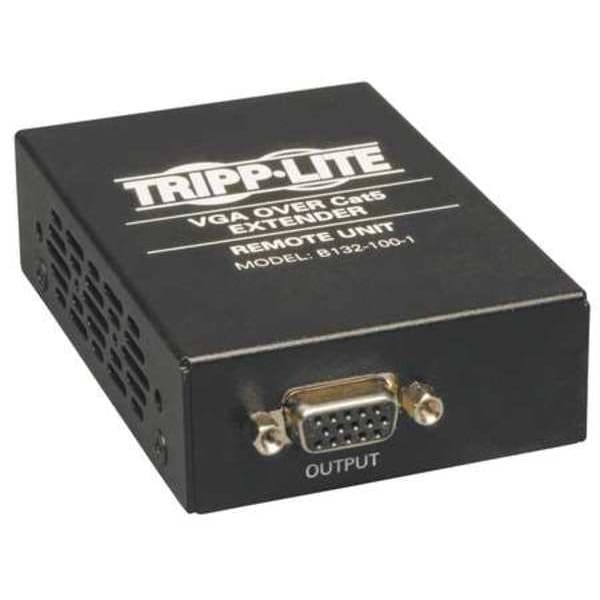

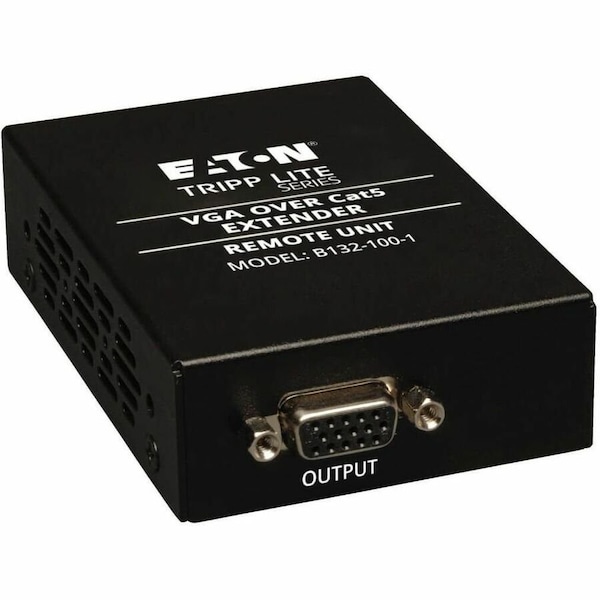

Tripp Lite Display Extender Receiver, VGA, Cat5e/6 B132-100-1 - main

Display Extender Receiver, VGA, Cat5e/6

  • Mfr # B132-100-1

  • Zoro # G3699482

product price: $83.99
/ea
Free Shipping & Returns

Key Features

Connector Type - Patch Cord
RJ45 (Female); HD15 (Female)
Connector Type
HD15 Female, RJ45 Female
Standards
cUL Listed, FCC, PSE, REACH, RoHS Compliant, TAA, TUV, UL Listed
Jacket Color
Black
Cable Type
Cat5e, Cat6, VGA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B132-100-1
Zoro #
G3699482
UPC #
037332160126
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Receiver Height
1 in
Receiver Depth
3.60 in
Receiver Width
2.50 in
AC Power Adapter Cord Length (ft.)
4.5
Unit Dimensions (hwd / in.)
1.000 x 2.500 x 3.600

Details

Item
Video Extender Receiver
Connector Type - Patch Cord
RJ45 (Female); HD15 (Female)
Connector Type
HD15 Female, RJ45 Female
Standards
cUL Listed, FCC, PSE, REACH, RoHS Compliant, TAA, TUV, UL Listed
Jacket Color
Black
Cable Type
Cat5e, Cat6, VGA
Color
Black
Connection
HD15 Female, RJ45 Female
Installation Method
Mounting Kit
Hz
60
Features
Includes Mounting Hardware Allowing ]Wallmount, Rackmount Or Polemount
Sub-Category
Video
Number of Ports
1
Includes
B132-100-1 TAA/GSA Compliant Video ConsoleMini-ScrewdriverMounting HardwareExternal PowerOwner's Manual
Product Type
Display Extender Receiver
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Form Factor
Wall Mountable, Rack-mountable, Pole-mountable
Connectivity Technology
Wired
Media Type Supported
Twisted Pair
Maximum Video Resolution
1920 x 1440
Product Color
Black
Product Name
Extender Remote (Receiver) Unit
Number of Output Devices Supported
1
Twisted Pair Cable Standard
Category 6
TAA Compliant
Yes
Maximum Operating Distance
1000 ft
Package Contents
B132-100-1 TAA/GSA Compliant Video Console, Mini-Screwdriver, Mounting Hardware, External Power, Owner's Manual
Number of Input Devices Supported
1
Compatible Cable Performance Category
6
Maximum Frequency
60 Hz
Max 720P Range (ft)
500
Maximum Signal Range Details
1000 ft @ 1024 x 768 (60Hz) 500 ft @ 1920 x 1440 (60Hz)
Max 1600 x 1200 Range (ft)
500
Built-In Equalizer
Yes
Max Supported Video Resolution
1920 x 1440 @ 60Hz
Maximum Signal Range (ft)
1000
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
External Power Supply Certifications
FCC; PSE; TUV; UL; cUL
Max 1920 x 1080 (1080p) Range (ft)
500
Max 480i Range (ft)
1000
AC Power Adapter Output Specs (V / A)
5V / 2A
LED Indicators
Red (Power); RJ45: Green (Connection), Orange (Data Transmission)
Range Extension using other Tripp Lite product
1000 ft. @ 1024 x 768 (60Hz) 500 ft. @ 1920 x 1440 (60Hz)
Receiver - Number of Video Outputs
1
Technology
VGA/SVGA; Cat5/5e; Cat6
Side B - Connector 1
HD15 (FEMALE)
Form Factor/Mounting Options
Box; Wall-mount
IR Remote Extension Support
No
AC Plug Type
NEMA 1-15P
Power Source
Unit (Included)
DC Barrel Plug
OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve
AC Power Adapter Plug(s)
NEMA 1-15P North America
Max 640 x 480 Range (ft)
1000
Max 480P Range (ft)
1000
Power Source Type
AC Adapter
Other Tripp Lite product used to extend range
B132-110A
Max 800 x 600 Range (ft)
1000
Power Over Cable (PoC) Support
No
Housing
Metal
Max 1024 x 768 Range (ft)
1000
Max 1920 x 1200 Range (ft)
500
Max 1440 x 900 Range (ft)
500
Receiver/Transceiver Video Output
VGA
RS-232 Serial Extension Support
No
Number of Displays
1
Storage Temperature Range
-4° to 158°F (-20° to 70°C)
Max 1080i Range (ft)
500
AC Power Adapter Input Specs (V / Hz / A)
100-240V / 50/60Hz / 0.5A
Product Compliance
FCC (USA); Trade Agreements Act (TAA)
Max 1920 x 1440 Range (ft)
500
Side A - Connector 1
RJ45 (FEMALE)
Operating Temperature Range
32° to 122°F (0° to 50°C)
EDID Compatible
Yes
Relative Humidity
10% to 90% RH, Non-Condensing
Package Includes
Extender remote (Receiver) unit;Mini-Screwdriver for EQ/Gain adjustment;Mounting Hardware;External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.);Owner's Manual
Recommended Cabling
Solid Wire Cat6 Cables (Tripp Lite's N202-Series)
Max 1080P Range (ft)
500
Max 1280 x 720 (720p) Range (ft)
500
Included Mounting Accessories
Wallmount
3D Video Supported
No
Base Unit Connectivity Technology
Wired
Environmentally Friendly
Yes

Description

Display Extender Receiver, Features Includes Mounting Hardware Allowing ]Wallmount, Rackmount Or Polemount, Number of Ports 1, Color Black, Connector Type HD15 Female, RJ45 Female, Maximum Frequency 60 Hz, Product Type Display Extender Receiver, Includes 5ft Power Cord, Screwdriver, Mounting Hardware, Compatible Cable Performance Category 6, Standards cUL Listed, FCC, PSE, REACH, RoHS Compliant, TAA, TUV, UL Listed, Manufacturers Warranty Length 1 yr
