  11. Double Conversion UPS, 5kVA, Double conversion, Out: 120/200/208/220/230/240V
No Product Image Available

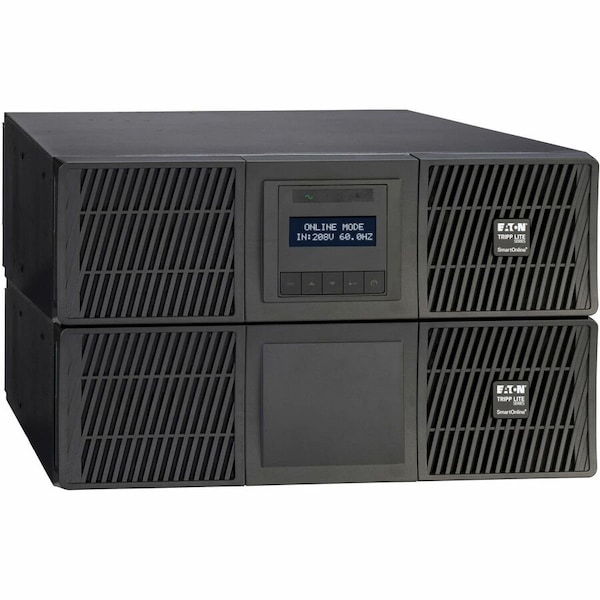

Double Conversion UPS, 5kVA, Double conversion, Out: 120/200/208/220/230/240V

  • Mfr # SU5000RTF

  • Zoro # G811904112

product price: $5,474.99
/ea
Item requires special delivery charges. A $165.00 per item surcharge will be applied.

Key Features

UPS Type
Double conversion
Power Rating
5kVA
Mounting
Rack/Tower
Wattage
4.5 kW
Input Voltage
200/208/220/230/240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SU5000RTF
Zoro #
G811904112
UPC #
037332286352
Country of Origin
Philippines

Dimensions

Width
17.3 in
Depth
27.03 in
Height
10.2 in
Overall Depth
27.03 in
Power Cord Length
10 ft
Overall Height
10.2 in
Overall Width
17.3 in

Details

Item
Double Conversion UPS
UPS Type
Double conversion
Power Rating
5kVA
Mounting
Rack/Tower
Wattage
4.5 kW
Input Voltage
200/208/220/230/240V AC
Output Voltage
120/200/208/220/230/240V
Backup Time (Half/Full Load)
11 min/3 min
Outlet Type
Hardwired
Medical Grade
Not Medical Grade Approved
Number of Outlets
21
Includes
5000Va 4500W 208V Double-Conversion UPS, Cable Gland for Hardwire Connection, Rack-Mounting Hardware for ups and Transformer (2x 9RK), RS-232 Cable, Sutfmr 120V Stepdown Transformer, Tower Support Stands, USB Cable, Webcardlxe Network Card
Hz
50/60 Hz
NEMA Plug Configuration
L6-30P
Standards
CE, cUL Listed, EN 62040-2, ENERGY STAR Qualified, FCC, FCC Part 15 Class A, NOM, RoHS
Automatic Volts Regulation
Yes
Battery Type
VRLA
Display Type
LCD
Housing Material
Metal
NEMA Receptacle Configuration
(18) 5-20R; (2) L6-20R; (1) L6-30R
Phase
Single
Manufacturer Warranty
2 yr
Plug Configuration
L6-30P
Input Current - Maximum
23.3 A
Battery Chemistry
Valve Regulated Lead Acid
Power Rating - Real
4.5 kW
Data Line Protection
Includes Data Line Surge Protection
Output Ports Included
USB
Number of Outlets - UPS
21
Replacement Battery Part Number
744-A1974
Includes Battery
Battery Included
Frequency
50/60 Hz
External Battery Pack Part Number
BP180RT
Operating Temperature - Minimum
32 Degrees F
Audible Alarm Conditions
Low Battery, Overload
Power Rating - Apparent
5 kVA
Run Time - Full Load
3 min
Operating Temperature - Maximum
104 Degrees F
Receptacle Configuration
5-20R, Hardwired, L6-20R, L6-30R
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
External Battery Compatible
External Battery Pack Compatible

Description

Double Conversion UPS
