  11. Fiber Optic Cable, Dplx, MMF, 50, OM3, 10m

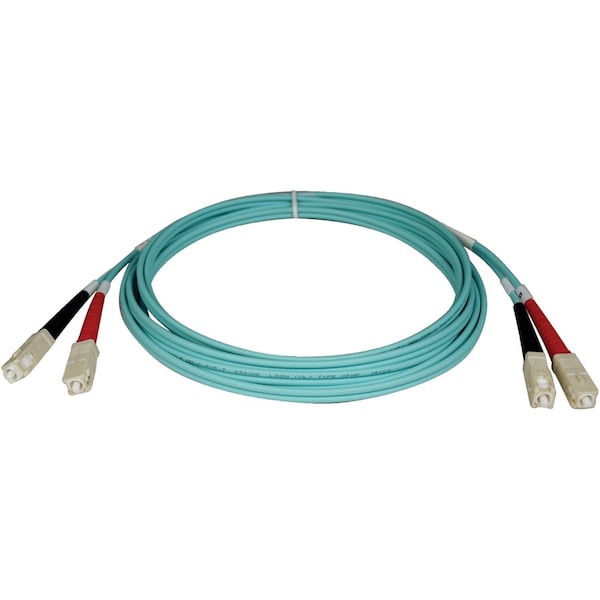

Tripp Lite Fiber Optic Cable, Dplx, MMF, 50, OM3, 10m N806-10M - main

Fiber Optic Cable, Dplx, MMF, 50, OM3, 10m

  • Mfr # N806-10M

  • Zoro # G5181605

product price: $29.39
/ea

Key Features

Number of Fibers
2
Color
Aqua
Cable Length (in.)
393.7
Technology
Multimode
Side A - Connector 1
SC DUPLEX (MALE)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N806-10M
Zoro #
G5181605
UPC #
037332124814
Country of Origin
China

Dimensions

Cable Length (in.)
393.7
Cable Length (ft.)
32.8
Clad Diameter
125 micron
Core Diameter
50 micron
Cable Length
32.80 ft
Core/Cladding Diameter
50/125 µm
Clad Diameter (microns)
125
Fiber Cable Length
10M (32.8 ft)
Core Diameter (microns)
50
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)

Details

Item
Fiber Optic Cable,Dplx,MMF,50,OM3,10m
Number of Fibers
2
Color
Aqua
Technology
Multimode
Side A - Connector 1
SC DUPLEX (MALE)
Side B - Connector 1
SC DUPLEX (MALE)
Cable Jacket Rating
LSZH
Optical Mode
OM3
Network Speed
10Gbps / 40Gbps / 100Gbps
Connector on First End Details
4 x SC
Compatibility
TYIPICAL APPLICATIONS: For use with 10-Gigabit Ethernet equipment
Product Type
Network Cable
Product Name
10Gb Aqua Duplex Multimode 50/125 Fiber Patch Cable
Additional Information
10gb Ethernet speed to 300 meters @850nm, Use with VCSEL and LED laser light sources, High-Speed, High-Bandwidth, Low-Cost, Backward compatible with legacy LAN's, Ideal for Fibre Channel (SAN) applications, IEEE 802.3ae and TIA LOMMF compliant
Package Contents
10 meter Duplex Multimode 50/125 Aqua Fiber Patch Cable, SC/SC
Package Includes
10 meter Duplex Multimode 50/125 Aqua OM3 Fiber Patch Cable, SC/SC
Insertion Loss
≤ 0.20 dB
Endface Polish
PC
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Attenuation @ 850NM
3.0 dB/km
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Connector Color
Beige
Cable Jacket Material
LSZH
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Operating Humidity Range
5% to 85% RH, Non-Condensing
Cable Jacket Color
Aqua
Storage Humidity Range
35% to 65% RH, Non-Condensing

Description

Fiber Optic Cable,Dplx,MMF,50,OM3,10m
