  11. Fiber Optic Cable, Dplx, MMF, 50, OM3, 3m

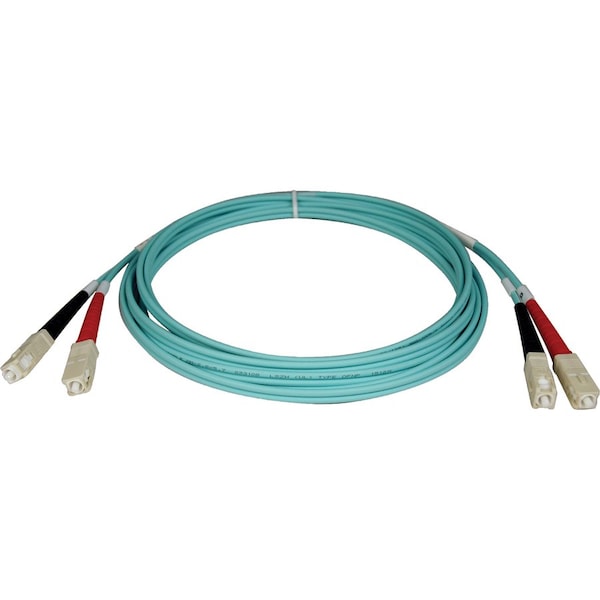

Tripp Lite Fiber Optic Cable, Dplx, MMF, 50, OM3, 3m N806-03M - main

Fiber Optic Cable, Dplx, MMF, 50, OM3, 3m

  • Mfr # N806-03M

  • Zoro # G5181620

product price: $17.55
/ea

Key Features

Number of Fibers
2
Color
Aqua
Cable Length
10 ft
Clad Diameter
125 micron
Side B - Connector 1
SC DUPLEX (MALE)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N806-03M
Zoro #
G5181620
UPC #
037332124807
Country of Origin
China

Dimensions

Cable Length
10 ft
Clad Diameter
125 micron
Cable Length (ft.)
9.8
Core Diameter
50 micron
Cable Length (in.)
118.1
Core/Cladding Diameter
50/125 µm
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)
Clad Diameter (microns)
125
Fiber Cable Length
3M (9.8 ft)
Core Diameter (microns)
50

Details

Item
Fiber Optic Cable,Dplx,MMF,50,OM3,3m
Number of Fibers
2
Color
Aqua
Side B - Connector 1
SC DUPLEX (MALE)
Technology
Multimode
Network Speed
10Gbps / 40Gbps / 100Gbps
Optical Mode
OM3
Cable Jacket Rating
LSZH
Side A - Connector 1
SC DUPLEX (MALE)
Package Contents
Aqua Duplex Fiber Patch Cable, 3 meter Duplex Multimode 50/125 Aqua Fiber Patch Cable, SC/SC
Certifications & Standards
IEEE 802.3ae, TIA LOMMF
Connector on First End Details
2 x SC Network - Male
Product Type
Network Cable
Additional Information
10gb Ethernet speed to 300 meters @850nm
Cable Characteristic
Patch Cable
Connector on Second End Details
2 x SC Network - Male
Cable Type
Fiber Optic
Product Name
Aqua Duplex Fiber Patch Cable
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Endface Polish
PC
Insertion Loss
≤ 0.20 dB
Package Includes
3 meter Duplex Multimode 50/125 Aqua OM3 Fiber Patch Cable, SC/SC
Cable Jacket Material
LSZH
Cable Jacket Color
Aqua
Connector Color
Beige
Storage Humidity Range
35% to 65% RH, Non-Condensing
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Attenuation @ 850NM
3.0 dB/km
Operating Humidity Range
5% to 85% RH, Non-Condensing

Description

Fiber Optic Cable,Dplx,MMF,50,OM3,3m
