  11. Fiber Optic Cable, Dplx, MMF, 50, OM3, 3m

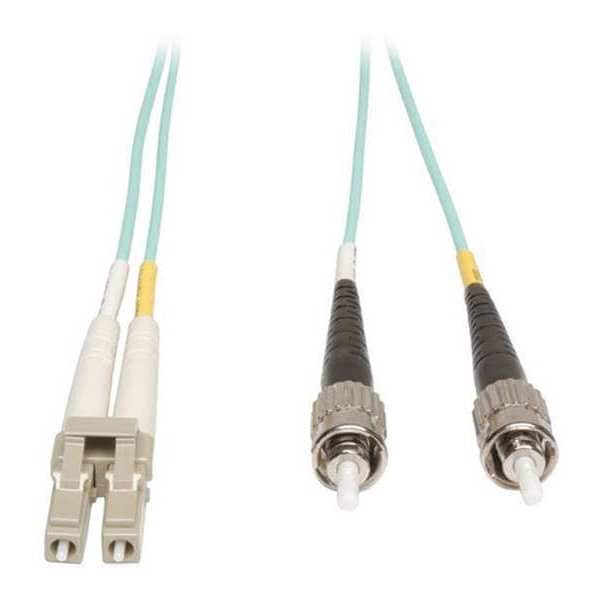

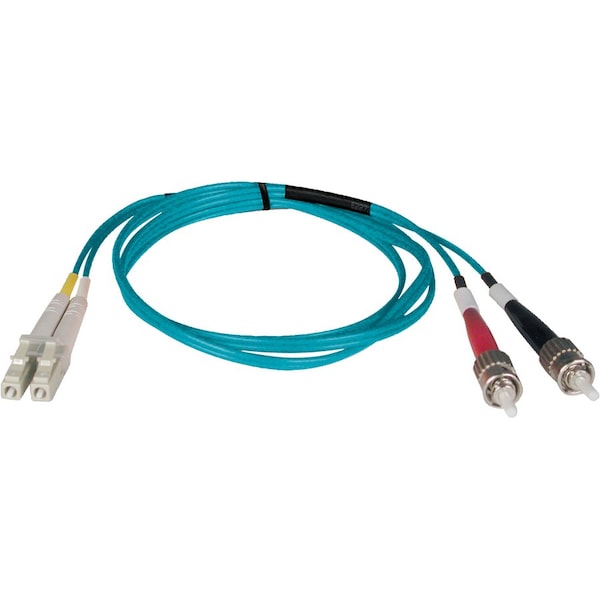

Tripp Lite Fiber Optic Cable, Dplx, MMF, 50, OM3, 3m N818-03M - main

Fiber Optic Cable, Dplx, MMF, 50, OM3, 3m

  • Mfr # N818-03M

  • Zoro # G5181526

product price: $27.89
/ea

Key Features

Number of Fibers
2
Color
Aqua
Cable Length
10 ft
Core Diameter
50 micron
Cable Length (in.)
118.1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N818-03M
Zoro #
G5181526
UPC #
037332134707
Country of Origin
China

Dimensions

Cable Length
10 ft
Core Diameter
50 micron
Cable Length (in.)
118.1
Cable Length (ft.)
9.8
Clad Diameter
125 micron
Core/Cladding Diameter
50/125 µm
Clad Diameter (microns)
125
Core Diameter (microns)
50
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)
Fiber Cable Length
3M (9.8 ft)

Details

Item
Fiber Optic Cable,Dplx,MMF,50,OM3,3m
Number of Fibers
2
Color
Aqua
Network Speed
10Gbps / 40Gbps / 100Gbps
Side B - Connector 1
ST DUPLEX (MALE)
Side A - Connector 1
LC DUPLEX (MALE)
Optical Mode
OM3
Technology
Multimode
Cable Jacket Rating
LSZH
Package Contents
Fiber Optic Duplex Patch Cable, 3 meter ( 10ft ) Duplex Multimode 50/125 Aqua Fiber Patch Cable, LC/ST
Product Color
Aqua Blue
Connector on First End Details
2 x LC - Male
Product Name
Fiber Optic Duplex Patch Cable
Additional Information
Designed for 10-Gig Ethernet applications, High-Speed, High-Bandwidth, Low-Cost, Backward compatible with legacy LAN's
Cable Characteristic
Patch Cable
Connector on Second End Details
2 x ST - Male
Certifications & Standards
IEEE 802.3ae
Product Type
Network Cable
Cable Type
Fiber Optic
Attenuation @ 850NM
3.0 dB/km
Cable Jacket Color
Aqua
Operating Humidity Range
5% to 85% RH, Non-Condensing
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Storage Humidity Range
35% to 65% RH, Non-Condensing
Endface Polish
PC
Insertion Loss
LC ≤ 0.20 dB; ST ≤ 0.20 dB
Network Compatibility
1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps
Cable Jacket Material
LSZH
Connector Color
White; Black
Package Includes
3 meter ( 10ft ) Duplex Multimode 50/125 Aqua OM3 Fiber Patch Cable, LC/ST

Description

Fiber Optic Cable,Dplx,MMF,50,OM3,3m
