  11. Fiber Optic Cable, Dplx, MMF, 50, SC/SC, 164m

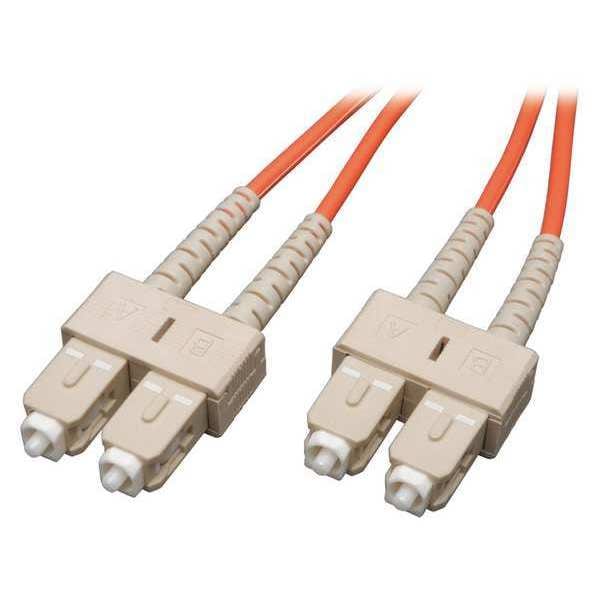

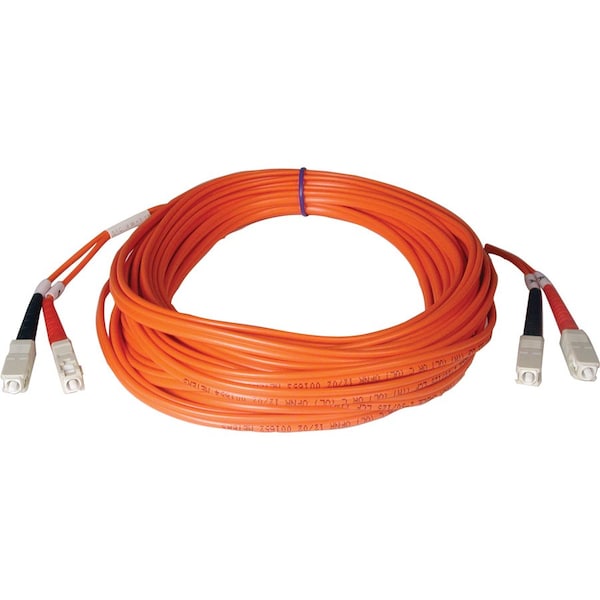

Tripp Lite Fiber Optic Cable, Dplx, MMF, 50, SC/SC, 164m N506-50M - main

Fiber Optic Cable, Dplx, MMF, 50, SC/SC, 164m

  • Mfr # N506-50M

  • Zoro # G5182007

product price: $92.99
/ea
Free Shipping & Returns

Key Features

Number of Fibers
2
Color
Orange
Jacket Type
Plenum
Cable Length
164 ft
Side B - Connector 1
SC DUPLEX (MALE)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N506-50M
Zoro #
G5182007
UPC #
037332119599
Country of Origin
China

Dimensions

Cable Length
164 ft
Clad Diameter
125 micron
Core Diameter
50 micron
Cable Length (in.)
1968.5
Cable Length (ft.)
164
Core/Cladding Diameter
50/125 µm
Core Diameter (microns)
50
Clad Diameter (microns)
125
Fiber Cable Length
50M (164 ft)
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)

Details

Item
Fiber Optic Cable,Dplx,MMF,50,SC/SC,164m
Number of Fibers
2
Color
Orange
Jacket Type
Plenum
Side B - Connector 1
SC DUPLEX (MALE)
Technology
Multimode
Network Speed
1Gbps
Optical Mode
OM2
Side A - Connector 1
SC DUPLEX (MALE)
Approvals
FDDI and OFNR rated
Package Contents
Duplex Fibre Channel Patch Cable, 50M duplex MMF cable SC/SC 50/125 fiber
Connector on First End Details
2 x SC
Product Name
Duplex Fibre Channel Patch Cable
Cable Characteristic
Patch Cable
Product Type
Network Cable
Cable Type
Fiber Optic
Additional Information
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum, Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum, Numeric apeture: .275 nominal, Proof test level: 100,000 PSI, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze
Connector on Second End Details
2 x SC Network
Operating Humidity Range
5% to 85% RH, Non-Condensing
Cable Jacket Rating
OFNR
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Package Includes
50M duplex MMF cable SC/SC 50/125 fiber
Cable Jacket Material
LSZH
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Connector Color
Beige
Endface Polish
PC
Insertion Loss
≤ 0.20 dB
Storage Humidity Range
35% to 65% RH, Non-Condensing
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Attenuation @ 850NM
3.0 dB/km
Cable Jacket Color
Orange

Description

Fiber Optic Cable,Dplx,MMF,50,SC/SC,164m
