  11. Fiber Optic Cable, Dplx, MMF, 50, SC/SC, 3m

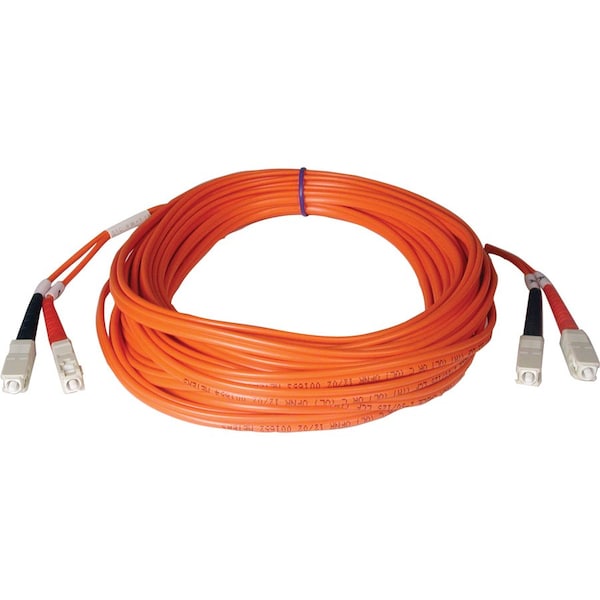

Tripp Lite Fiber Optic Cable, Dplx, MMF, 50, SC/SC, 3m N506-01M - main

Fiber Optic Cable, Dplx, MMF, 50, SC/SC, 3m

  • Mfr # N506-01M

  • Zoro # G5182068

product price: $17.85
/ea

Key Features

Number of Fibers
2
Jacket Type
Plenum
Color
Orange
Cable Length
3.30 ft
Optical Mode
OM2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N506-01M
Zoro #
G5182068
UPC #
037332119438
Country of Origin
China

Dimensions

Cable Length
3.30 ft
Core Diameter
50 micron
Clad Diameter
125 micron
Cable Length (ft.)
3.3
Cable Length (in.)
39.4
Core/Cladding Diameter
50/125 µm
Fiber Cable Length
1M (3.3 ft)
Core Diameter (microns)
50
Clad Diameter (microns)
125
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)

Details

Item
Fiber Optic Cable,Dplx,MMF,50,SC/SC,3m
Number of Fibers
2
Jacket Type
Plenum
Color
Orange
Optical Mode
OM2
Side A - Connector 1
SC DUPLEX (MALE)
Side B - Connector 1
SC DUPLEX (MALE)
Technology
Multimode
Network Speed
1Gbps
Cable Jacket Rating
LSZH
Approvals
FDDI and OFNR rated
Product Name
Fibre Channel Patch Cable
Certifications & Standards
FDDI, OFNR
Cable Characteristic
Patch Cable
Product Color
Orange
Cable Type
Fiber Optic
Connector on Second End Details
2 x SC Network - Male
Additional Information
Number of fibers: 2, Fiber type: all glass graded index, Core diameter: two 50+/-3 microns, CLAD diameter: 125+/-2 microns, Primary coating diameter: 245+/-15 microns, Secondary coating diameter: 900+/-50 microns, Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum, Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum, Numeric apeture: .275 nominal, Proof test level: 100,000 PSI, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze
Package Contents
Fibre Channel Patch Cable, 1M duplex MMF cable SC/SC 50/125 fiber
Connector on First End Details
2 x SC Network - Male
Product Type
Network Cable
Package Includes
1M duplex MMF cable SC/SC 50/125 fiber
Connector Color
Beige
Attenuation @ 850NM
3.0 dB/km
Operating Humidity Range
5% to 85% RH, Non-Condensing
Storage Humidity Range
35% to 65% RH, Non-Condensing
Cable Jacket Color
Orange
Endface Polish
PC
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Cable Jacket Material
LSZH
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Insertion Loss
≤ 0.20 dB

Description

Fiber Optic Cable,Dplx,MMF,50,SC/SC,3m
