  11. Fiber Optic Cable, Dplx, SMF, 8.3, SC/ST, 5m

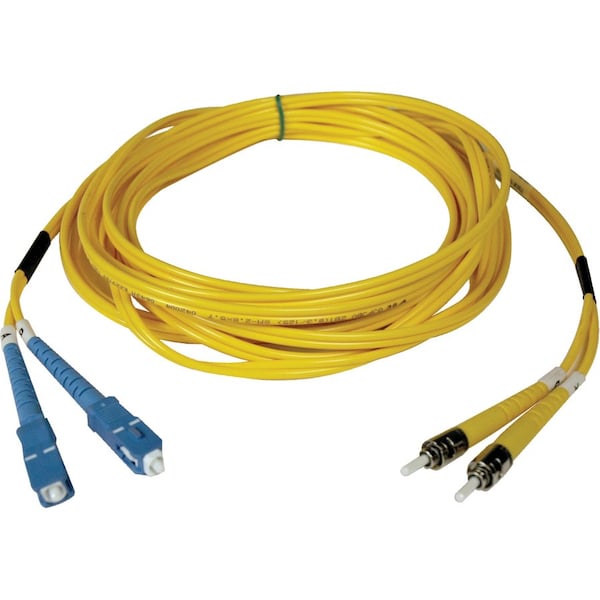

Tripp Lite Fiber Optic Cable, Dplx, SMF, 8.3, SC/ST, 5m N354-05M - main

Fiber Optic Cable, Dplx, SMF, 8.3, SC/ST, 5m

  • Mfr # N354-05M

  • Zoro # G5182725

product price: $29.35
/ea

Key Features

Number of Fibers
2
Jacket Type
Plenum
Color
Yellow
Side B - Connector 1
ST DUPLEX (MALE)
Core Diameter
8.3 micron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N354-05M
Zoro #
G5182725
UPC #
037332122414
Country of Origin
China

Dimensions

Core Diameter
8.3 micron
Cable Length (in.)
196.9
Clad Diameter
125 micron
Cable Length (ft.)
16.4
Cable Length
16.40 ft
Core/Cladding Diameter
9/125 µm
Core Diameter (microns)
9
Clad Diameter (microns)
125
Fiber Cable Length
5M (16.4 ft)
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)

Details

Item
Fiber Optic Cable,Dplx,SMF,8.3,SC/ST,5m
Number of Fibers
2
Jacket Type
Plenum
Color
Yellow
Side B - Connector 1
ST DUPLEX (MALE)
Side A - Connector 1
SC DUPLEX (MALE)
Cable Jacket Rating
LSZH
Approvals
FDDI and OFNR rated
Optical Mode
OS2
Technology
Singlemode
Product Type
Network Cable
Additional Information
Zipcord, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive
Cable Characteristic
Patch Cable
Certifications & Standards
FDDI, ONFR
Package Contents
Singlemode Duplex Patch Cable, 5-meter Duplex Single mode Fiber Patch Cable, SC/ST
Cable Type
Fiber Optic
Connector on Second End Details
2 x ST
Product Name
Singlemode Duplex Patch Cable
Compatibility
Any fiber optic hardware or NIC card requiring singlemode duplex cable with SC/ST connectors.
Connector on First End Details
2 x SC
Attenuation @ 1550NM
0.22 dB/km
Connector Color
Black; Blue
Cable Jacket Material
LSZH
Insertion Loss
≤ 0.30 dB
Cable Jacket Color
Yellow
Attenuation @ 1310NM
0.36 dB/km
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Endface Polish
UPC
Network Compatibility
1 Gbps (Gigabit); 10 Gbps; 40 Gbps; 100 Gbps
Storage Humidity Range
35% to 65% RH, Non-Condensing
Package Includes
5-meter Duplex Single mode Fiber Patch Cable, SC/ST
Operating Humidity Range
5% to 85% RH, Non-Condensing

Description

Fiber Optic Cable,Dplx,SMF,8.3,SC/ST,5m
