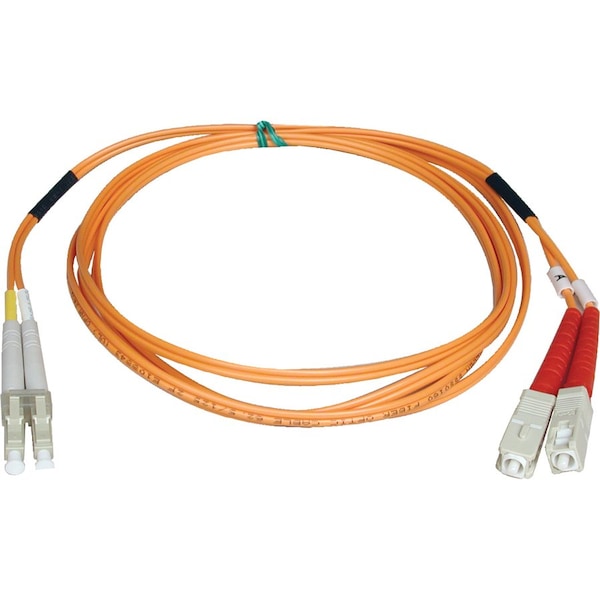

Tripp Lite Fiber Optic Cable, MMF, 62.5, LC/SC, 30m N316-30M - main

Fiber Optic Cable, MMF, 62.5, LC/SC, 30m

  • Mfr # N316-30M

  • Zoro # G5183081

product price: $56.99
/ea

Key Features

Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Cable Length
98.40 ft
Technology
Multimode
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N316-30M
Zoro #
G5183081
UPC #
037332135018
Country of Origin
China

Dimensions

Cable Length
98.40 ft
Clad Diameter
125 micron
Cable Length (ft.)
98.4
Core Diameter
62.5 micron
Cable Length (in.)
1181.1
Core/Cladding Diameter
62.5/125 µm
Core Diameter (microns)
62.5
Fiber Cable Length
30M (98.4 ft)
Clad Diameter (microns)
125
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)

Details

Item
Fiber Optic Cable,MMF,62.5,LC/SC,30m
Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Technology
Multimode
Optical Mode
OM1
Network Speed
1Gbps
Approvals
FDDI and OFNR rated
Side B - Connector 1
SC DUPLEX (MALE)
Side A - Connector 1
LC DUPLEX (MALE)
Connector on First End Details
2 x SC Network - Male
Product Color
Orange
Product Name
Fiber Optic Duplex Patch Cable
Additional Information
Color coded shrouds identify transmit and receive, Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Connector on Second End Details
2 x LC - Male
Package Contents
Fiber Optic Duplex Patch Cable, 30 meter ( 100ft ) Duplex MMF Cable LC/SC 62.5/125 Fiber
Certifications & Standards
FDDI, OFNR
Product Type
Network Cable
Cable Characteristic
Patch Cable
Cable Type
Fiber Optic
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Endface Polish
PC
Attenuation @ 850NM
3.0 dB/km
Storage Humidity Range
35% to 65% RH, Non-Condensing
Cable Jacket Color
Orange
Connector Color
White; Beige
Cable Jacket Rating
OFNR
Insertion Loss
LC ≤ 0.20 dB; SC ≤ 0.20 dB
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Cable Jacket Material
LSZH
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Operating Humidity Range
5% to 85% RH, Non-Condensing
Package Includes
30 meter ( 100ft ) Duplex MMF Cable LC/SC 62.5/125 Fiber

Description

Fiber Optic Cable,MMF,62.5,LC/SC,30m
