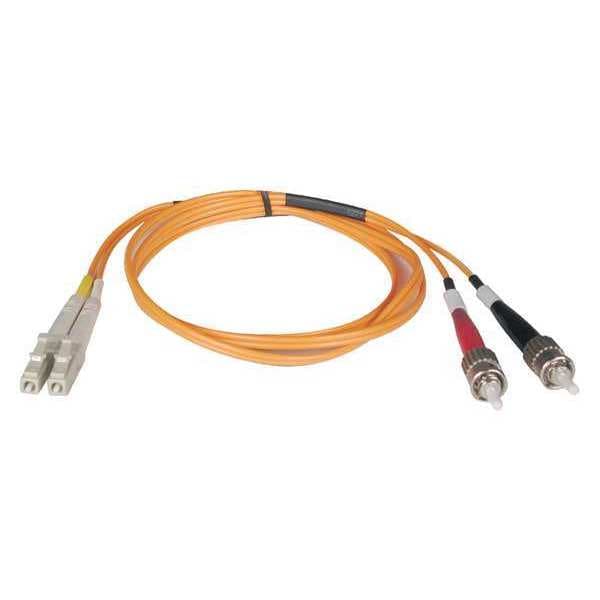

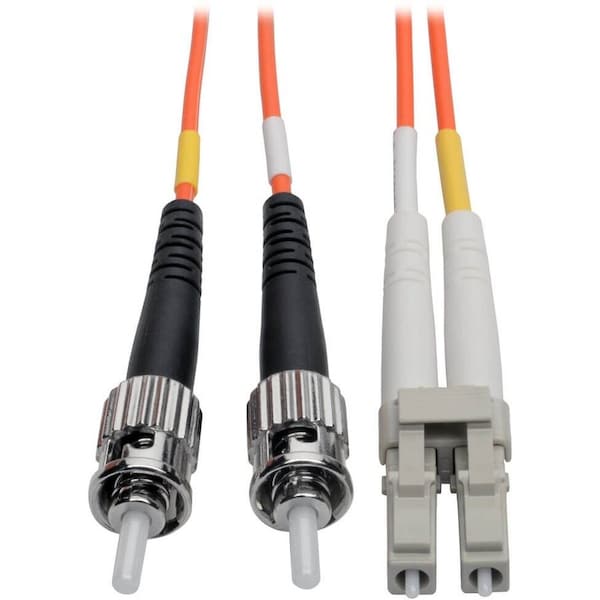

Tripp Lite Fiber Optic Cable, MMF, 62.5, LC/ST, 10m N318-10M - main

Fiber Optic Cable, MMF, 62.5, LC/ST, 10m

  • Mfr # N318-10M

  • Zoro # G5183039

product price: $26.55
/ea

Key Features

Number of Fibers
2
Color
Orange
Jacket Type
LSZH
Clad Diameter
125 micron
Side B - Connector 1
ST DUPLEX (MALE)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N318-10M
Zoro #
G5183039
UPC #
037332122629
Country of Origin
China

Dimensions

Clad Diameter
125 micron
Core Diameter
62.5 micron
Cable Length (ft.)
32.8
Cable Length (in.)
393.7
Cable Length
32.80 ft
Core/Cladding Diameter
62.5/125 µm
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)
Clad Diameter (microns)
125
Core Diameter (microns)
62.5
Fiber Cable Length
10M (32.8 ft)

Details

Item
Fiber Optic Cable,MMF,62.5,LC/ST,10m
Number of Fibers
2
Color
Orange
Jacket Type
LSZH
Side B - Connector 1
ST DUPLEX (MALE)
Optical Mode
OM1
Network Speed
1Gbps
Side A - Connector 1
LC DUPLEX (MALE)
Technology
Multimode
Approvals
FDDI and OFNR rated
Certifications & Standards
FDDI rated, OFNR rated
Package Contents
Fiber Optic Duplex Patch Cable, 10-meter duplex MMF LC/ST 62.5/125 fiber cable
Cable Characteristic
Patch Cable
Connector on Second End Details
2 x ST - Male
Connector on First End Details
2 x LC - Male
Product Name
Fiber Optic Duplex Patch Cable
Product Color
Orange
Product Type
Network Cable
Cable Type
Fiber Optic
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Endface Polish
PC
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM
3.0 dB/km
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Connector Color
Black; Gray
Cable Jacket Rating
OFNR
Package Includes
10-meter duplex MMF LC/ST 62.5/125 fiber cable
Cable Jacket Material
LSZH
Storage Humidity Range
35% to 65% RH, Non-Condensing
Operating Humidity Range
5% to 85% RH, Non-Condensing
Insertion Loss
LC ≤ 0.20 dB; ST ≤ 0.20 dB
Cable Jacket Color
Orange

Description

Fiber Optic Cable,MMF,62.5,LC/ST,10m
