  11. Fiber Optic Cable, MMF, 62.5, LC/ST, 20m

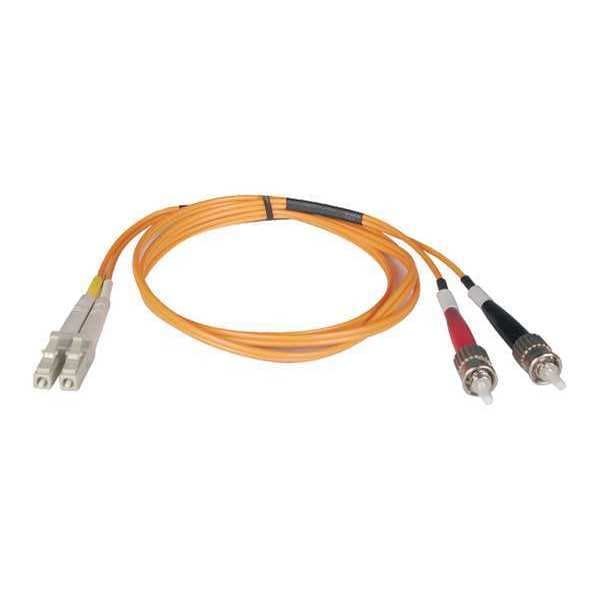

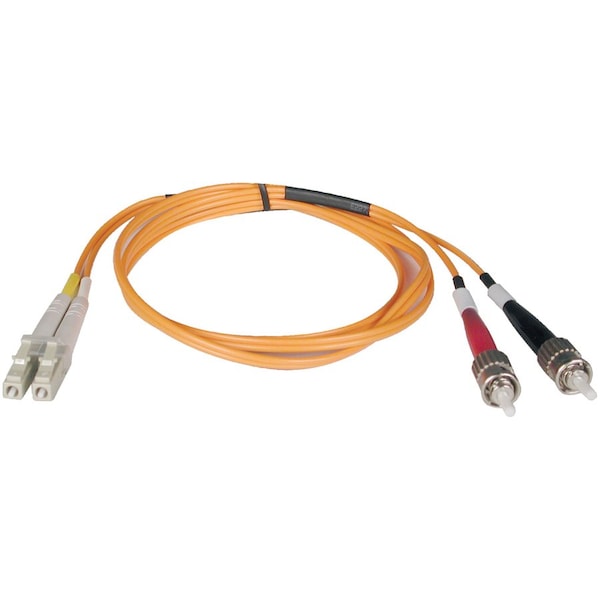

Tripp Lite Fiber Optic Cable, MMF, 62.5, LC/ST, 20m N318-20M - main

Fiber Optic Cable, MMF, 62.5, LC/ST, 20m

  • Mfr # N318-20M

  • Zoro # G5183011

product price: $45.49
/ea

Key Features

Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Cable Length
65.60 ft
Technology
Multimode
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N318-20M
Zoro #
G5183011
UPC #
037332134950
Country of Origin
China

Dimensions

Cable Length
65.60 ft
Clad Diameter
125 micron
Core Diameter
62.5 micron
Cable Length (ft.)
65.6
Cable Length (in.)
787.4
Core/Cladding Diameter
62.5/125 µm
Fiber Cable Length
20M (65.6 ft)
Clad Diameter (microns)
125
Core Diameter (microns)
62.5
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)

Details

Item
Fiber Optic Cable,MMF,62.5,LC/ST,20m
Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Technology
Multimode
Side A - Connector 1
LC DUPLEX (MALE)
Network Speed
1Gbps
Optical Mode
OM1
Side B - Connector 1
ST DUPLEX (MALE)
Approvals
FDDI and OFNR rated
Cable Characteristic
Patch Cable
Product Type
Network Cable
Product Name
Fiber Optic Duplex Patch Cable
Product Color
Orange
Additional Information
Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive
Package Contents
Fiber Optic Duplex Patch Cable, 20-meter duplex MMF LC/ST 62.5/125 fiber cable
Connector on First End Details
2 x ST - Male
Connector on Second End Details
2 x LC - Male
Certifications & Standards
FDDI, OFNR
Cable Type
Fiber Optic
Package Includes
20-meter duplex MMF LC/ST 62.5/125 fiber cable
Cable Jacket Rating
OFNR
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Cable Jacket Material
LSZH
Attenuation @ 850NM
3.0 dB/km
Connector Color
Black; Gray
Operating Humidity Range
5% to 85% RH, Non-Condensing
Storage Humidity Range
35% to 65% RH, Non-Condensing
Endface Polish
PC
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Cable Jacket Color
Orange
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Insertion Loss
LC ≤ 0.20 dB; ST ≤ 0.20 dB

Description

Fiber Optic Cable,MMF,62.5,LC/ST,20m
