  6. Fiber Optic Cable, MMF, 62.5, LC/ST, 7m

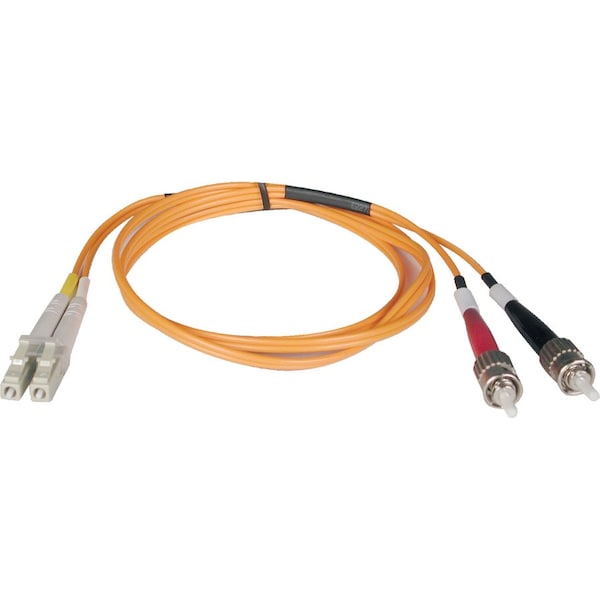

Tripp Lite Fiber Optic Cable, MMF, 62.5, LC/ST, 7m N318-07M - main

Fiber Optic Cable, MMF, 62.5, LC/ST, 7m

  • Mfr # N318-07M

  • Zoro # G5183057

product price:  $24.39
/ea

Key Features

Number of Fibers
2
Color
Orange
Jacket Type
LSZH
Cable Length
23 ft
Side A - Connector 1
LC DUPLEX (MALE)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
N318-07M
Zoro #
G5183057
UPC #
037332139511
Country of Origin
China

Dimensions

Cable Length
23 ft
Cable Length (ft.)
23
Core Diameter
62.5 micron
Cable Length (in.)
275.6
Clad Diameter
125 micron
Core/Cladding Diameter
62.5/125 µm
Clad Diameter (microns)
125
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)
Fiber Cable Length
7M (23 ft)
Core Diameter (microns)
62.5

Details

Item
Fiber Optic Cable,MMF,62.5,LC/ST,7m
Number of Fibers
2
Color
Orange
Jacket Type
LSZH
Side A - Connector 1
LC DUPLEX (MALE)
Technology
Multimode
Side B - Connector 1
ST DUPLEX (MALE)
Approvals
FDDI and OFNR rated
Network Speed
1Gbps
Optical Mode
OM1
Product Type
Network Cable
Certifications & Standards
FDDI rated, OFNR rated
Cable Characteristic
Patch Cable
Package Contents
Fiber Optic Duplex Patch Cable, 7-meter duplex MMF LC/ST 62.5/125 fiber cable
Product Name
Fiber Optic Duplex Patch Cable
Product Color
Orange
Cable Type
Fiber Optic
Connector on Second End Details
2 x ST - Male
Connector on First End Details
2 x LC - Male
Cable Jacket Color
Orange
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Connector Color
Black; Gray
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM
3.0 dB/km
Package Includes
7-meter duplex MMF LC/ST 62.5/125 fiber cable
Storage Humidity Range
35% to 65% RH, Non-Condensing
Cable Jacket Material
LSZH
Insertion Loss
LC ≤ 0.20 dB; ST ≤ 0.20 dB
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Endface Polish
PC
Operating Humidity Range
5% to 85% RH, Non-Condensing
Cable Jacket Rating
OFNR

Description

Fiber Optic Cable,MMF,62.5,LC/ST,7m
