  11. Fiber Optic Cable, MMF, 62.5, SC/ST, 30m

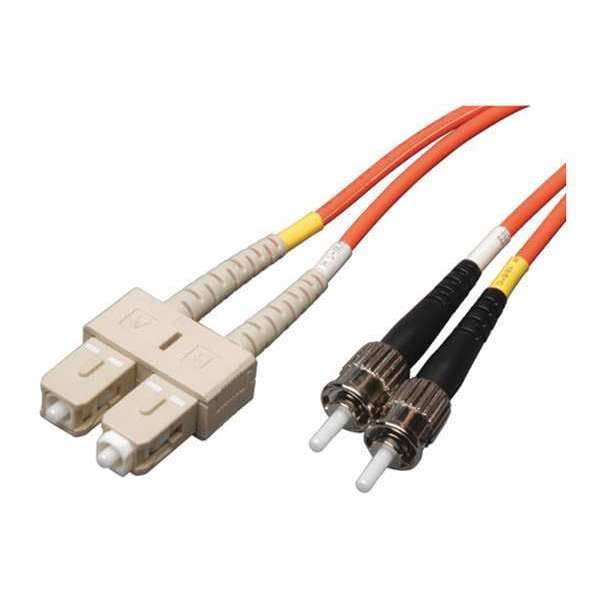

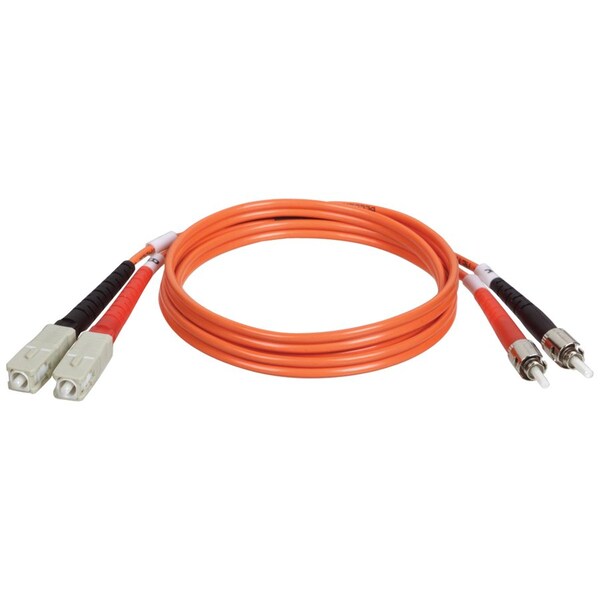

Tripp Lite Fiber Optic Cable, MMF, 62.5, SC/ST, 30m N304-30M - main

Fiber Optic Cable, MMF, 62.5, SC/ST, 30m

  • Mfr # N304-30M

  • Zoro # G5183370

product price: $38.65
/ea

Key Features

Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Cable Length
98.40 ft
Cable Length (ft.)
98.4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N304-30M
Zoro #
G5183370
UPC #
037332135230
Country of Origin
China

Dimensions

Cable Length
98.40 ft
Cable Length (ft.)
98.4
Core Diameter
62.5 micron
Cable Length (in.)
1181.1
Clad Diameter
125 micron
Core/Cladding Diameter
62.5/125 µm
Minimum Bend Radius
20MM (Dynamic); 10MM (Static)
Core Diameter (microns)
62.5
Clad Diameter (microns)
125

Details

Item
Fiber Optic Cable,MMF,62.5,SC/ST,30m
Jacket Material
Polyvinyl Chloride (PVC)
Number of Fibers
2
Color
Orange
Side A - Connector 1
SC DUPLEX (MALE)
Optical Mode
OM1
Network Speed
1Gbps
Side B - Connector 1
ST DUPLEX (MALE)
Technology
Multimode
Approvals
FDDI and OFNR rated
Package Contents
Fiber Optic Duplex Patch Cable, 30-meter ( 100ft ) duplex MMF cable ST/SC 62.5/125 fiber
Certifications & Standards
FDDI, OFNR
Product Type
Network Cable
Product Color
Orange
Connector on Second End Details
2 x ST - Male
Cable Characteristic
Patch Cable
Additional Information
Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive
Product Name
Fiber Optic Duplex Patch Cable
Connector on First End Details
2 x SC Network - Male
Cable Type
Fiber Optic
Insertion Loss
≤0.20dB
Cable Jacket Color
Orange
Package Includes
30-meter ( 100ft ) duplex MMF cable ST/SC 62.5/125 fiber
Cable Jacket Rating
OFNR
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Cable Jacket Material
LSZH
Operating Temperature Range
-4 to 140°F (-20 to 60°C)
Storage Temperature Range
-4 to 140°F (-20 to 60°C)
Storage Humidity Range
35% to 65% RH, Non-Condensing
Endface Polish
PC
Connector Color
White; Black
Operating Humidity Range
5% to 85% RH, Non-Condensing
Attenuation @ 850NM
3.0dB/Km

Description

Fiber Optic Cable,MMF,62.5,SC/ST,30m
