- MFR #
- PS-415-HG-OEM
- Zoro #
- G3421397
- UPC #
- 037332139214
- Country of Origin
- China
- Item
- Outlet Strip
- Type
- Hospital Grade, Rack Mounted
- Total Number of Outlets
- 4
- Receptacle Configuration
- 5-15R-HG
- Plug Configuration
- 5-15P-HG
- Color
- White
- Gauge/Conductor
- 14/3
- Standards
- NFPA 99: 10.2.3.6; RoHS; UL 1363A
- For Use With
- Mobile Carts, Instruments and Diagnostic Equipment, AC Power Distribution with Hospital-Grade Receptacles and Plug where Durability and reliability are Required
- Power Indicator
- No
- Circuit Breaker
- 600VAC FD
- NEMA Plug Configuration - Ext. Cords and Outlet Strips
- 5-15P-HG
- Amps
- 15 A
- NEMA Receptacle Configuration
- NEMA 5-15R-HG
- Includes
- User Manual with Warranty Information
- Medical Grade
- Yes
- Footnotes
- 6,12
- Number of Outlet Rows
- 1
- Housing Material
- Metal
- Medical Facility Use
- Patient Care - Only When Permanently Mounted (UL 1363A)
- Number of Outlets
- 4
- Number of Power Switches
- 0
- Max. Amps - Ext. Cords and Outlet Strips
- 15 A
- NEC Cord Designation
- SJT
- NEMA Plug Configuration
- NEMA 5-15P-HG
- Voltage
- 120V AC
- Gauge/Conductor - Ext. Cords and Outlet Strips
- 14/3
- Mounting Style
- Keyhole
- Color - Ext. Cords and Outlet Strips
- White
- Number of Total Outlets - Ext. Cords and Outlet Strips
- 4
- Hz
- 50/60 Hz
- Outlet Center Distance
- 1 1/4 in
- Number of Transformer Outlets
- 0
- Max. Amps
- 15A
- Trade Designation
- SJT
- Application
- Healthcare Facility
- Number of Conductors
- 3
- Frequency
- 50/60 Hz
- Features
- Anti-Microbial Protected, Integrated Keyhole Mounting Slots
- Watts
- 1800W
- Maximum Input Current
- 15 A
- Maximum Frequency
- 60 Hz
- Package Contents
- PS-415-HG-OEM 4 Outlets Power Strip, PS-415-HG-OEM Power Strip, Owner's manual and warranty information
- Input Voltage
- 110 V AC
- Product Type
- Power Strip
- Frequency Compatibility
- 50 / 60 Hz
- Mounting Details
- Includes flanges
- Nominal Input Voltage(s) Supported
- 120V AC
- Package Includes

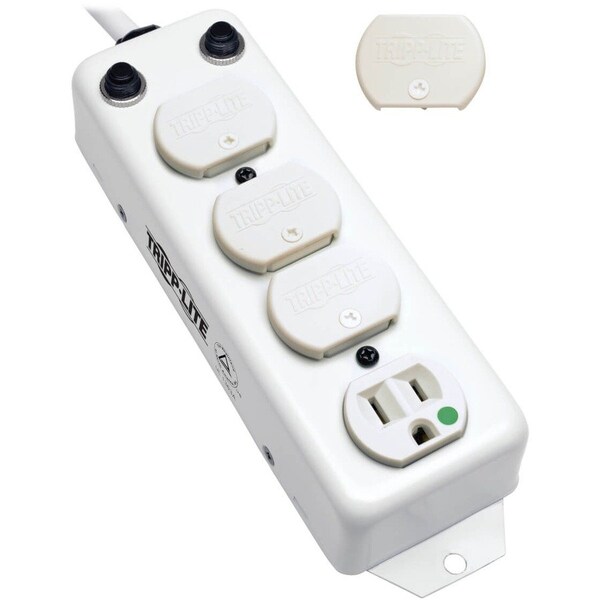

- PS-415-HG-OEM UL 1363A Medical-Grade Power Strip with four 15A Hospital-Grade Outlets and 15-ft. (4.57 m) Cord;Kit of four optional, reusable locking outlet covers;Owner's Manual with maintenance requirements
- Circuit Breaker (amps)
- 15 A
- Outlets Measurement (Center to Center)
- Inner outlets = 1.27 in.
- Included Mounting Accessories
- Mounting tabs and flanges
- Material of Construction
- Metal
- Overload Protection
- 2 x 15amp breakers (1 line, 1 neutral)
- Form Factors Supported
- IV poles, mobile carts, crash carts and mobile medical workstations
- Mounting Holes or Slots
- Yes
- Outlet Orientation
- Single row of 4
- Built-In Circuit Breaker
- Yes
- Output Receptacles
- (4) 5-15R-HG
- Input Plug Features
- Hospital Grade Plug
- Communication Port
- None
- Special Features
- Anti microbial, x2 resettable 15A circuit breakers
- Number of Circuit Breakers
- 2
- Plug Style
- Straight
- Rated Energy Absorption
- Not Rated
- Maximum Current
- 15 A
- Medical Facility Use UL Rating
- UL 1363A
