  11. Outlet Strip, Rack Mounted, 4 5-15R-HG, 5-15P-HG, 10 ft., White

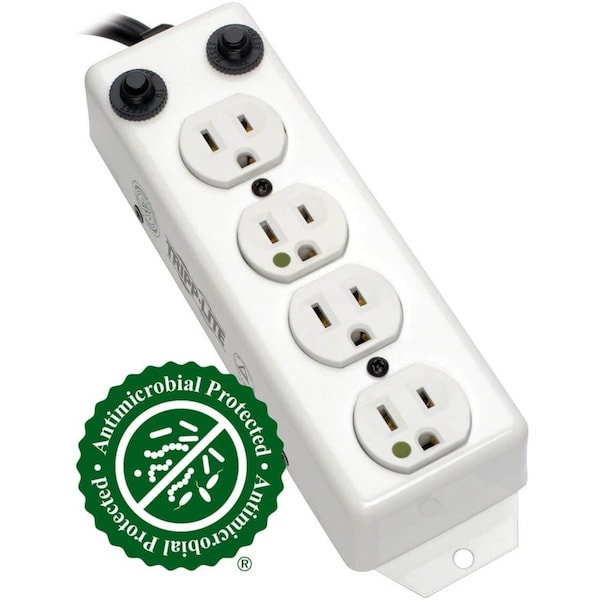

Tripp Lite Outlet Strip, Rack Mounted, 4 5-15R-HG, 5-15P-HG, 10 ft., White PS-410-HGOEMCC - main

Outlet Strip, Rack Mounted, 4 5-15R-HG, 5-15P-HG, 10 ft., White

  • Mfr # PS-410-HGOEMCC

  • Zoro # G4266053

product price: $142.99
/ea
Free Shipping & Returns

Key Features

Type
Rack Mounted
Total Number of Outlets
4
Receptacle Configuration
5-15R-HG
Plug Configuration
5-15P-HG
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PS-410-HGOEMCC
Zoro #
G4266053
UPC #
037332148834
Country of Origin
China

Dimensions

Cord Length
10 ft.
Cord Length - Ext. Cords and Outlet Strips
10 ft.
Height
1 3/4 in
Length
8 1/2 in
Width
2 1/2 in
Depth
1.5"
Wire Size
14 AWG
Length (Straight Wireway)
8 35/64 in

Details

Item
Outlet Strip
Type
Rack Mounted
Total Number of Outlets
4
Receptacle Configuration
5-15R-HG
Plug Configuration
5-15P-HG
Color
White
Gauge/Conductor
14/3
Standards
NFPA 99: 10.2.3.6; RoHS; UL 1363A
Number of Power Switches
0
Includes
User Manual with Warranty Information
Housing Material
metal
Medical Facility Use
Patient Care - Only When Permanently Mounted (UL 1363A)
NEMA Plug Configuration
5-15P-HG
Number of Total Outlets - Ext. Cords and Outlet Strips
4
NEC Cord Designation
SJT
Number of Outlet Rows
1
Amps
15
Medical Grade
Yes
NEMA Plug Configuration - Ext. Cords and Outlet Strips
5-15P-HG
For Use With
Mobile Cart, Diagnostic Equipment, Instrument, IV Pole
Number of Outlets
4
Color - Ext. Cords and Outlet Strips
White
Plug Configuration - Ext. Cords and Power Strips
Straight, No Swivel
NEMA Receptacle Configuration
5-15R-HG
Circuit Breaker
600VAC FD
Voltage
120V AC
Mounting Style
Keyhole
Power Indicator
No
Gauge/Conductor - Ext. Cords and Outlet Strips
14/3
Max. Amps - Ext. Cords and Outlet Strips
15.0
Outlet Center Distance
3 in
Number of Transformer Outlets
2
Max. Amps
15 A
Hz
50/60 Hz
Special Features
Coiled Cord
Application
Healthcare Facility
Plug Style
Straight
Trade Designation
SJT
Number of Conductors
3
Features
Anti-Microbial Protected, Integrated Keyhole Mounting Slots
Watts
1800W
Product Type
Power Strip
Compatibility
Mobile Carts, IV Poles
Package Contents
PS-410-HG-OEMCC 4-Outlets Power Strip, Owner's Manual and Warranty Information
Maximum Frequency
60 Hz
Input Voltage
120 V AC
Maximum Input Current
15 A
Certifications & Standards
UL1363A
Outlet Orientation
Single row of 4
Built-In Circuit Breaker
Yes
Output Receptacles
(4) 5-15R-HG
Form Factors Supported
IV poles, mobile carts, crash carts and mobile medical workstations
Overload Protection
2 x 15amp breakers (1 line, 1 neutral)
Circuit Breaker (amps)
15
Nominal Input Voltage(s) Supported
120V AC
Input Plug Features
Coiled Hospital Grade Plug
Outlets Measurement (Center to Center)
3.05 in.
Material of Construction
Metal
Package Includes
PS-410-HGOEMCC UL 1363A Medical-Grade Power Strip with four 15A Hospital-Grade Outlets and 3-ft. (0.91 m) Coiled, Extendable Cord;Owner's Manual with maintenance requirements
Mounting Details
Includes flanges
Mounting Holes or Slots
Yes
Included Mounting Accessories
Mounting tabs and flanges
Frequency Compatibility
50 / 60 Hz

Description

Outlet Strip, Application Healthcare Facility, Housing Material Metal, Total Number of Outlets 4, Max. Amps 15 A, Cord Length 10 ft, Number of Power Switches 0, Power Indicator No, Number of Outlet Rows 1, Receptacle Configuration Hospital Grade NEMA 5-15R, Plug Configuration Hospital Grade NEMA 5-15P, Wire Size 14 AWG, Mounting Style Keyhole, Color White, Medical Facility Use Patient Care - Only When Permanently Mounted (UL 1363A), Number of Transformer Outlets 2, Number of Conductors 3
